Remove/install alternator - AR15.40-P-5032RKB

ENGINE 157, 278 in MODEL 231

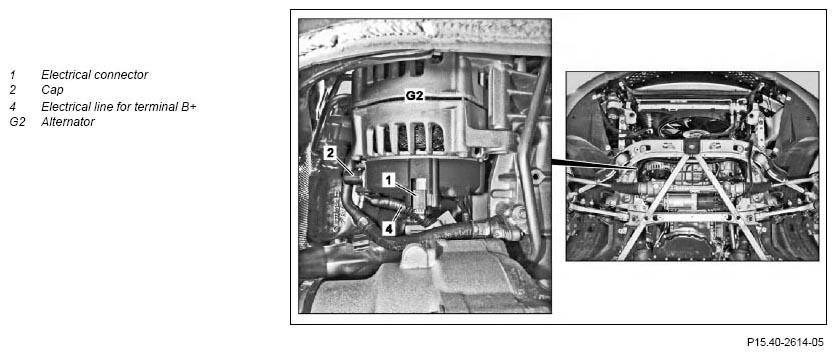

Fig 1: Alternator Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

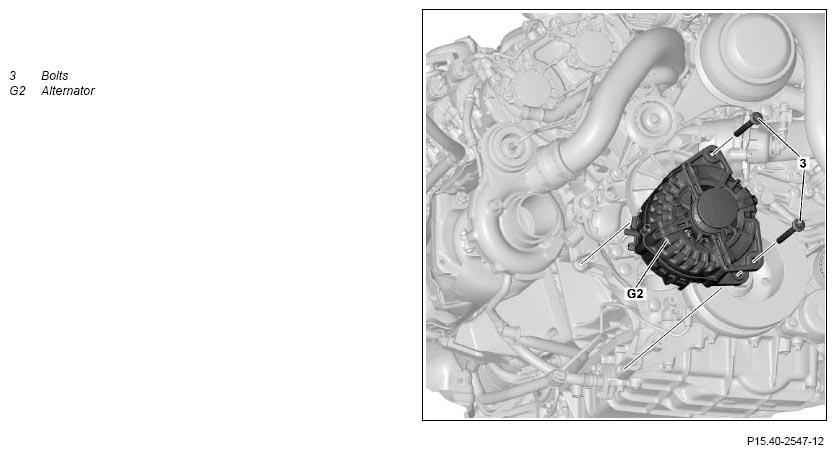

Fig 2: Alternator Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line		AR54.10-P-0003RK
	Notes on battery		AH54.10-P-0001-01A
2	Remove poly-V belt		AR13.20-P-0001RKB
3	Remove lower engine compartment paneling		AR61.20-P-1105RK
4	Disconnect electrical connection (1) at the alternator (G2)
5	Remove electrical line circuit B+ (4) at alternator (G2)	To do this detach cap (2) and unscrew nut on alternator (G2). Nut, circuit B+ to alternator	*BA15.40-P-1002-01F
6	Remove screw/bolts (3) of alternator (G2)	Bolt, alternator to timing case	*BA15.40-P-1001-01F
7	Remove alternator (G2) downwards
8	Install in the reverse order

ALTERNATOR

Number	Designation			Engine 157	Engine 278
BA15.40-P-1001-01F	Bolt, alternator to timing case	Stage 1	Nm	20	20
		Stage 2	Nm	-	-

ALTERNATOR

Number	Designation		Engine 157	Engine 278
BA15.40-P-1002-01F	Nut, circuit B+ to alternator	Nm	15	15
