Remove/install a pressure sensor - AR07.04-P-0050LFA
ENGINE 276.8 in MODEL 217, 222
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Detach ground line from battery | AR54.10-P-0003LF | |
| 3 | Remove upper engine cover | ||
| 4 | Remove left-hand air filter housing | AR09.10-P-1150LFA | |

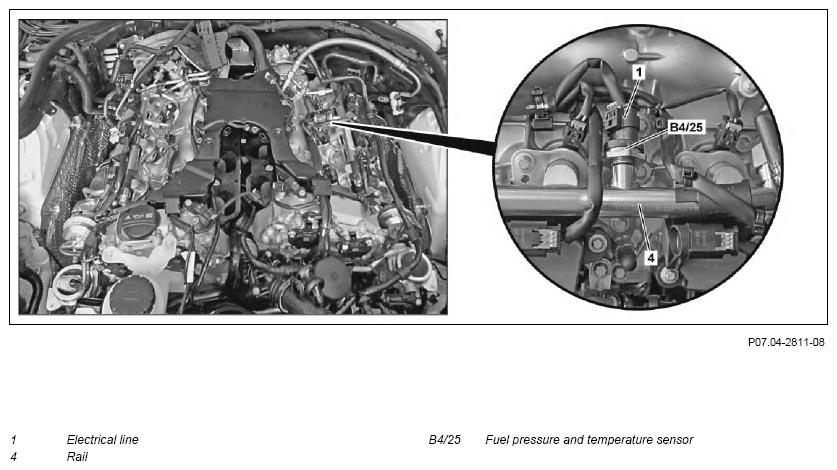

| 5 | Disconnect electrical line (1) at fuel pressure and temperature sensor (B4/25) | ||
| Clean | |||
| 6 | Clean rail (4) in the area of the fuel pressure and temperature sensor (B4/25) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 7 | Remove fuel pressure and temperature sensor (B4/25) from rail (4) | *BA07.52-P-1002-01G | |
| 8 | Install in the reverse order | ||
| 9 |
Read out fault memory using the diagnostic system and delete | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Check fuel system for leaks with engine running |
FUEL DISTRIBUTOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.52-P-1002-01G | Pressure and temperature sensor to fuel distributor | Nm | 33 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
