Remove/Install Front Door Control Unit - AR72.29-P-1000GQ

MODEL 166 except CODE Z04 (Light armoring) except CODE Z05 (B5 armoring on special protection version)

MODEL 292

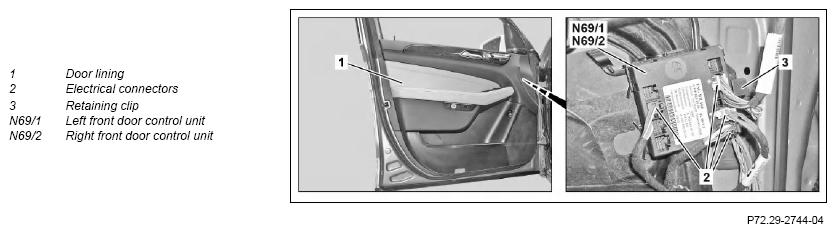

Shown on model 166.004

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and store basic data of left front door control unit (N69/1) or right front door control unit (N69/2)	When replacing left front door control unit (N69/1) or right front door control unit (N69/2).
			AD00.00-P-2000-04A
2	Remove door liner (1) from front door		AR72.10-P-1000GQ
3	Disconnect electrical connectors (2) from left front door control unit (N69/1) or right front door control unit (N69/2)
4	Press retaining clip (3) and remove left front door control unit (N69/1) or right front door control unit (N69/2) by pulling to side
5	Install in the reverse order
	Initial startup
6	Perform SCN coding for left front door control unit (N69/1) or right front door control unit (N69/2) with diagnostic system	When replacing left front door control unit (N69/1) or right front door control unit (N69/2).
6			AR54.21-P-0015X
7	Transfer previously stored basic data to left front door control unit (N69/1) or right front door control unit (N69/2)	When replacing left front door control unit (N69/1) or right front door control unit (N69/2).
			AD00.00-P-2000-04A
8	Perform start-up for left front door control unit (N69/1) or right front door control unit (N69/2)	When replacing left front door control unit (N69/1) or right front door control unit (N69/2).
