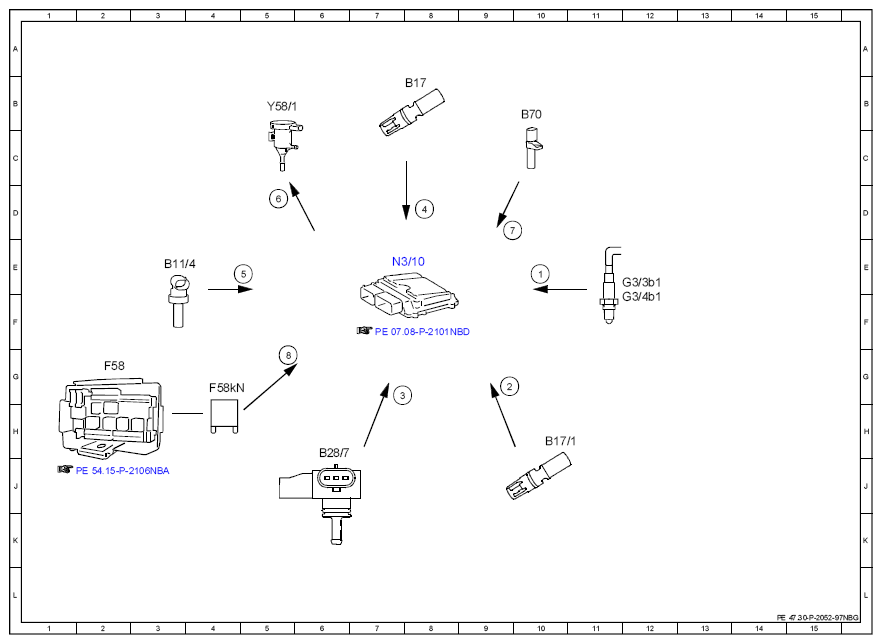

Electrical Function Diagram For Purging Function - PE47.30-P-2052-97NBG

ENGINE 276.9 in MODEL 166 as of model year 2016

Code:	Designation:	Position:
1	Oxygen sensor element, signal	10E
2	Intake manifold intake air temperature sensor, signal	9G
3	Engine load, signal	7G
4	Intake air temperature sensor, signal	8D
5	Coolant temperature sensor, signal	5E
6	Purging switchover valve, actuation	5D
7	Engine speed, signal	9D
8	Circuit 87, status	5G
B11/4	Coolant temperature sensor	3E
B17	Intake air temperature sensor	8B
B17/1	Intake manifold intake air temperature sensor	10H
B28/7	Pressure sensor downstream of throttle valve	6H
B70	Crankshaft Hall sensor	10B
F58	Engine compartment fuse and relay module	2G
F58kN	Circuit 87M relay	4G
G3/3b1	Left oxygen sensor element upstream of catalytic converter	11E
G3/4b1	Right oxygen sensor element upstream of catalytic converter	11F
N3/10	ME-SFI [ME] control unit	7E
Y58/1	Purge control valve	5B
