Remove/install starter - AR15.30-P-7100MRC

MODEL 212 with ENGINE 274.9 with CODE 924 (Provision for natural gas operation)

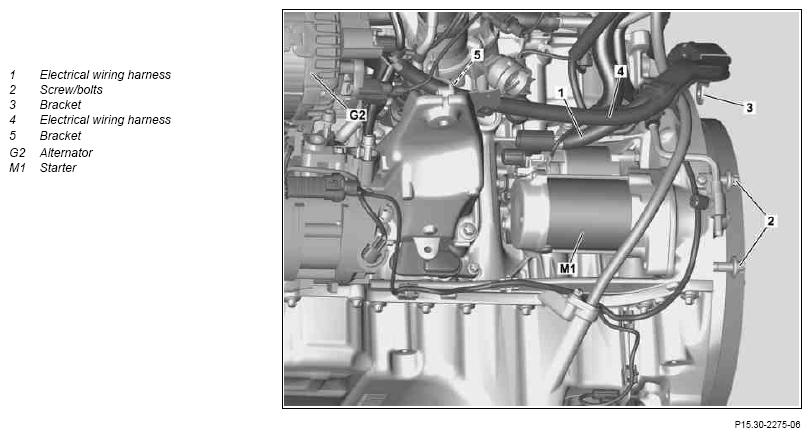

Fig 1: Starter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003EW
2	Remove bottom engine compartment paneling		AR61.20-P-1105EW
3	Detach bracket (3) from transmission
4	Detach electrical wiring harness (1) on starter (M1)		AR15.30-P-7100-03MR
		Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
		Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
5	Detach bracket (5) of electrical wiring harness (4) to alternator (G2) on engine support
6	Remove screw/bolts (2) and remove starter (M1) from bottom	Bolt, starter to crankcase	*BA15.30-P-1003-01J
	Check
7	Check starter ring gear for wear and damage	When replacing the starter (M1).
8	Install in the reverse order
