Electrical function schematic for steering column easy entry/exit adjustment - PE46.15-P-2051-97XAA

Code:	Designation:	Position:
1	Easy entry/exit, status	13F
2	Circuit 15, status	16E
3	Door rotary tumbler switch, status	21H
3	Door rotary tumbler switch, status	17F
4	Hall sensors, signal	14H
5	Steering column adjustment motor, actuation	16J
6	Crash, signal	8C
6	Crash, signal	14E
A1	Instrument cluster	10F
A85	Left front door lock	20J
A85s1	Left front door rotary tumbler switch	20K
CAN B	Interior CAN	12G
CAN B	Interior CAN	18G
CAN B	Interior CAN	16D
CAN B	Interior CAN	14D
CAN E	Chassis CAN	7C
CAN E1	Chassis CAN 1	7D
M20/2	Steering column up/down adjustment motor	15K
M20/2b1	Steering column up/down Hall sensor	14J
N10/1	Front SAM control unit with fuse and relay module	10C
N2/10	Supplemental restraint system control unit	4C
N32/1	Driver seat control unit	15F
N69/1	Left front door control unit	20F
N73	Electronic ignition switch control unit	16A

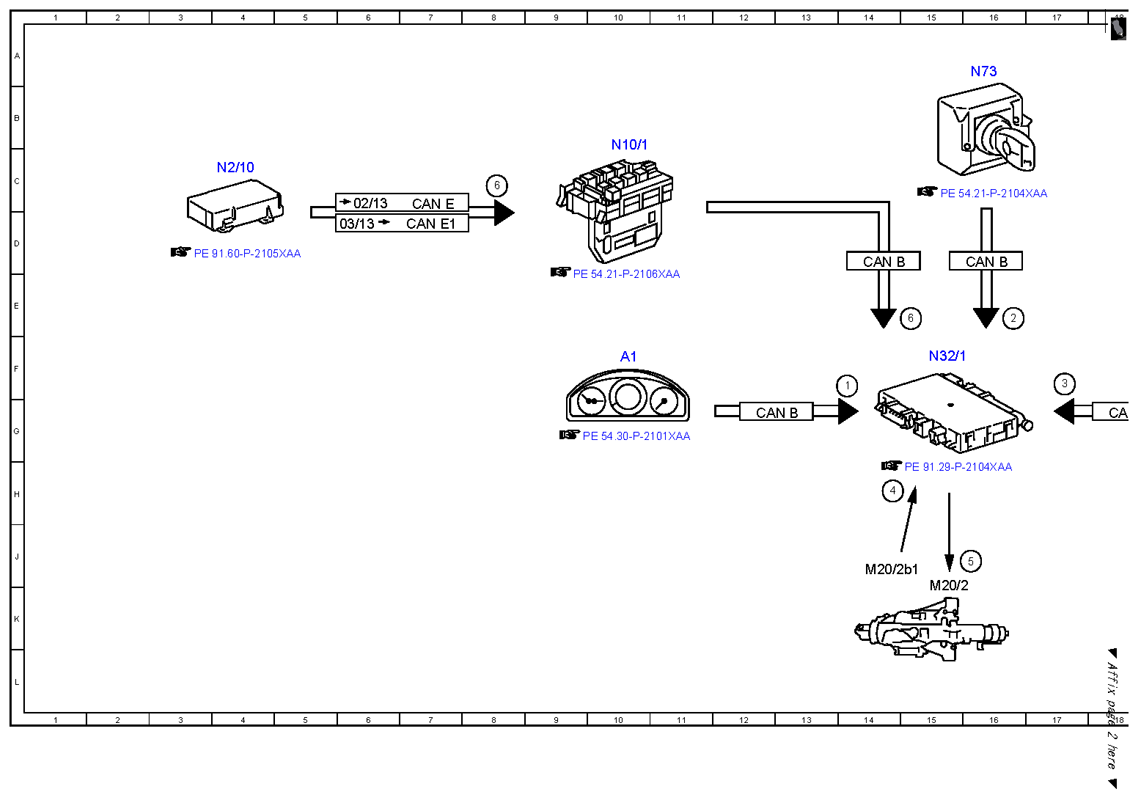

Fig 1: Steering Column Easy Entry/Exit Adjustment Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

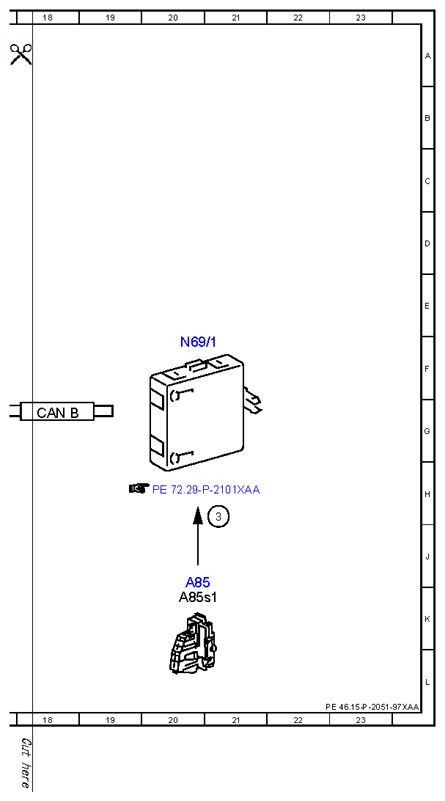

Fig 2: Steering Column Easy Entry/Exit Adjustment Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
