Electric mirror, function - GF88.79-P-0006FQ
MODEL 218

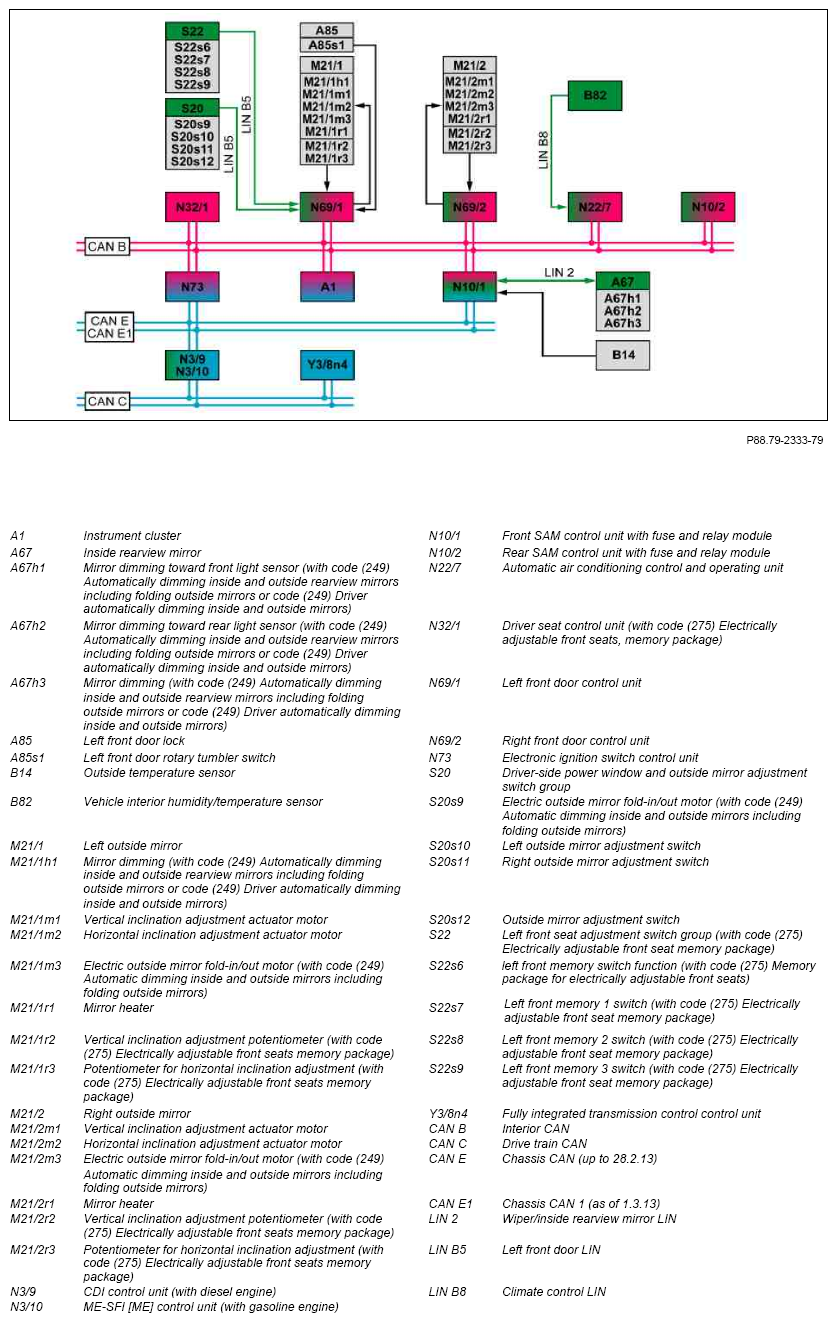

Electrical mirror
Electric outside mirrors, general
The electric outside mirror function contains the following partial functions, which are described in separate documents:
- Garage door opener (with code (231) Garage door opener or (232) Garage door opener at frequency of 284-390 MHz)
- Mirror glass adjustment of left/right outside mirror
- Heat left/right outside mirror
- Passenger side outside rearview mirror park position (with code (275) Electrically adjustable front seats, memory package)
- Folding left/right outside mirror (with code (249) Automatically dimming inside rearview mirror and outside mirrors including folding outside mirrors)
- Automatically dimming outside and inside mirrors (with code (249) Automatically dimming inside and outside rearview mirrors including folding outside mirrors or code (249) Driver automatically dimming inside and outside mirrors)
| Garage door opener, function | MODEL 218 with CODE 231 (Garage door opener) MODEL 218 with CODE 232 (Garage door opener with frequency 284-390 MHz) | GF68.05-P-0001FQ |
| Mirror lens adjustment left/right outside mirror, function | GF88.79-P-2008FQ | |
| Heat left/right outside rearview mirrors function | GF88.79-P-2000FQ | |
| Passenger-side outside mirror park position, function | MODEL 218 with CODE 275 (Electrically adjustable front seats memory package) | GF88.79-P-2006FQ |
| Fold left/right outside mirror, function | MODEL 218 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) | GF88.79-P-2002FQ |
| Automatic dimming outside mirror and inside rearview mirror, function | MODEL 218 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror (driver)) with CODE 494 (US version) MODEL 218 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) without CODE 494 (US version) | GF88.79-P-2010FQ |
