Remove/Install Front Diagonal Strut - AR61.10-P-5144LWO

Model 205.4, 238.4

Shown on model 238.4

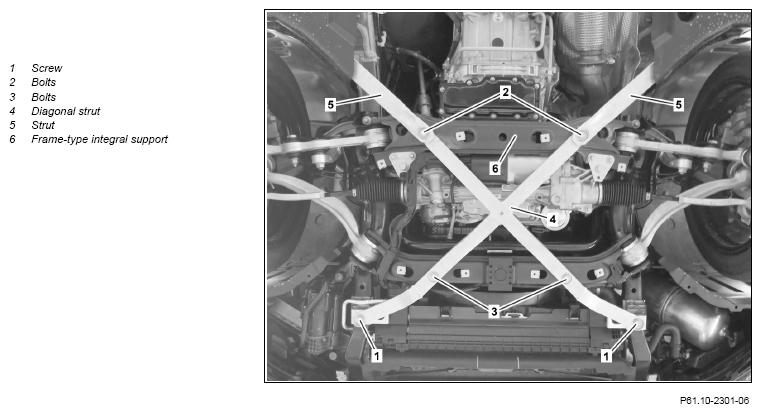

Fig 1: Front Diagonal Strut Components Location - Model 205.4; Shown on model 238.4

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove left and right front engine compartment linings.	Model 205.4	AR61.20-P-1105LW
		Model 238.4	AR61.20-P-1105LWE
2	Remove screw/bolts (1, 2).	Do not use an impact wrench. Otherwise the threads can be damaged. Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console	*BA61.10-P-1006-01L
3	Unscrew bolts (3) and remove diagonal strut (4).	Do not use an impact wrench. Otherwise the threads can be damaged. Position diagonal strut (4) between struts (5) and integral carrier (6). Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console	*BA61.10-P-1006-01L
4	Install in the reverse order.

FRAME FLOOR ASSEMBLY

Number	Designation		Model 205	Model 238
BA61.10-P-1006-01L	Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console	Nm	50	50
