Remove/install transfer case - AR28.10-P-0100GQ

MODEL 166 (except 166.058)

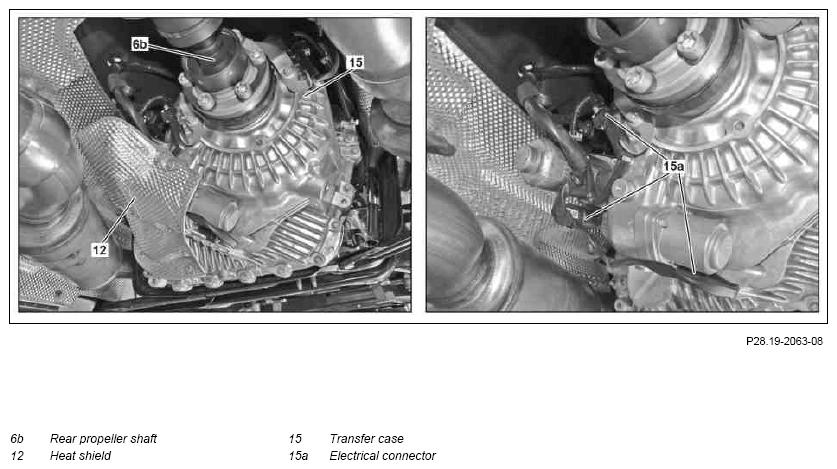

Fig 1: Identifying Transfer Case Remove/Install Components - Shown On Transfer Case With Code 430

Courtesy of MERCEDES-BENZ USA

Shown on transfer case with CODE 430 (On & off-road package)

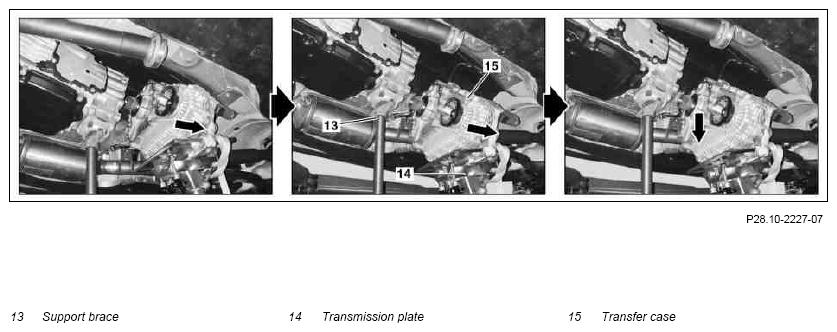

Fig 2: Identifying Transfer Case Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

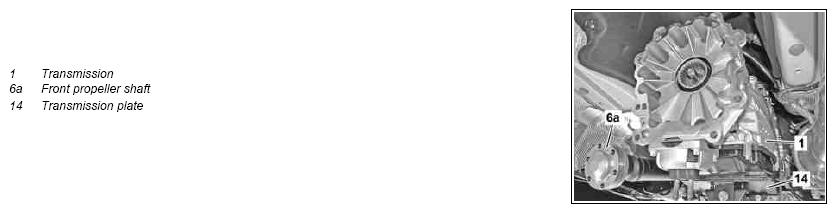

Fig 3: Identifying Transfer Case Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
1	Set DIRECT SELECT lever to position "N"
2	Release parking brake
3	Secure vehicle on vehicle lift		AR00.60-P-0100GZ
4	Remove respective section of the underfloor paneling		AR61.30-P-1001GQ
5	Remove temperature sensor upstream of SCR catalytic converter	MODEL 166 with ENGINE 651 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))	AR14.40-P-2011GZB
6	Remove heat shield (12)	MODEL 166 (except 166.058) with TRANSMISSION 722.9 with CODE 430 (On & off-road package)
7	Disconnect electrical connectors (15a) from transfer case (15) and unclip	MODEL 166 (except 166.058) with TRANSMISSION 722.9 with CODE 430 (On & off-road package)
8	Unclip cable set from transfer case (15)
9	Mark position of rear propeller shaft (6b) relative to output flange
10	Remove rear propeller shaft (6b) at output flange to rear axle from transfer case (15), place to one side and fix in place		AR41.10-P-0050-17GZ
		Observe tightening procedure for rear propeller shaft (6b).
		Self-locking bolt for propeller shaft on transfer case (to rear axle)	*BA41.10-P-1001-01F
		Retainer wrench	Fig 4
11	Mark position of front propeller shaft (6) relative to output flange
12	Remove front propeller shaft (6a) at output flange to front axle from transfer case (15), place to one side and fix in place		AR41.10-P-0070-03GZ
		Mark the position of the front propeller shaft (6a) on the output flange. Observe tightening procedure for front propeller shaft (6a).
		Self-locking bolt, propeller shaft to transfer case (to front axle)	*BA41.10-P-1003-01F
		Retainer wrench	Fig 4
13	Remove rear engine cross member	MODEL 166 (except 166.058) with ENGINE 276	AR22.10-P-1180GQ
14	Support rear engine mount using support brace (13)
15	Slowly lower drivetrain until upper bolts on transfer case (15) are accessible
16	Support transfer case (15) using transmission jack and transmission plate (14) and lash down securely	Transmission jack Transmission platform
17	Remove bolts from transfer case (15)	Bolt, transfer case to automatic transmission	*BA28.10-P-1002-01A
18	Push transfer case (15) to rear until transfer case (15) is completely detached from transmission (1), and lower transfer case (15)	Move input shaft of transfer case (15) completely out of transmission (1). Lightly grease gearing of input shaft of transfer case (15).
		Long-life grease	*BR00.45-Z-1001-06A
19	Install in the reverse order
	Check
20	Check oil quantity in transfer case (15) and correct if necessary	Filling screw to transfer case	*BA28.10-P-1001-01A
		MODEL 166 (except 166.058) Double-speed MODEL 166 (except 166.058) Single-speed	*BF28.10-P-1001-01E
21	Perform calibration using STAR DIAGNOSIS, read out fault memory and erase if necessary
			AD00.00-P-2000-04A
		Menu item: Transfer case → Control unit adaptations → Calibration

Fig 4: Identifying Retainer Wrench (164 589 02 07 00)

Courtesy of MERCEDES-BENZ USA
