Remove/install A-pillar outer section - AR63.20-P-1102NKB

MODEL 117, 156, 176, 242, 246

Shown on model 246

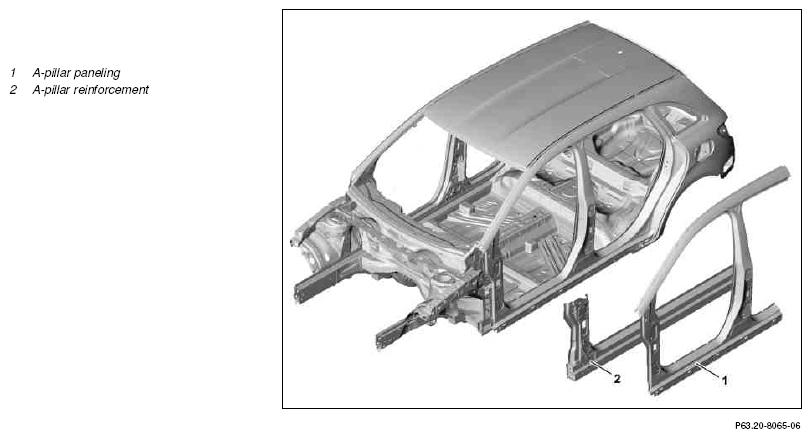

Fig 1: A-Pillar Paneling & Reinforcement - Shown On Model 246
G10251262Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  due to fan starting unexpectedly Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. AS20.40-Z-0001-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
NOTES Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
IMPORTANT General information on repair of vehicles with ultra-strength steels.   AH60.00-P-0024-01N
IMPORTANT Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
IMPORTANT Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
IMPORTANT General information on body repair   AH60.00-P-0001-01A
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blanket
3 Remove top front longitudinal member   AR62.20-P-1286NKB
4 Set up straightening bench with straightening bench crossmember and straightening tool set
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
IMPORTANT Observe set-up plans provided.
5 Place vehicle on straightening bench and fasten
6 Remove A-pillar paneling (1) and A-pillar reinforcement (2)   AR63.20-P-1102-01NKB
IMPORTANTCommercially available devices/tools
Round wire brush
Spot weld milling machine
Body power jigsaw
Heat gun
Wet and dry vacuum cleaner

Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
7 Prepare A-pillar paneling (1) and A-pillar reinforcement (2)   AR63.20-P-1102-02NKB
IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw

Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
8 Install A-pillar paneling (1) and A-pillar reinforcement (2) and weld in   AR63.20-P-1102-03NKB
REFER TO SPECIAL TOOLS 000 588 02 39 00 Rivet press tool   WS60.00-P-0010B
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   WS60.00-P-0022K
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
IMPORTANTCommercially available devices/tools
Manual temporary fastener
Spot welder
Round wire brush
Wet and dry vacuum cleaner
IMPORTANT When using Celette straightening system, also use anchoring set 9212.013.

Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
Adhesive kit, body, 2-component adhesive *BR00.45-Z-1092-02A
Blind rivet 6.5 X 12.5 *BR00.45-Z-1012-13A
SPECIAL TOOL Side portal frame Figure
9 Release vehicle from straightening bench, lift vehicle and remove straightening bench
10 Clean weld joints and sheet metal flange with round wire brush IMPORTANTCommercially available devices/tools  Round wire brush
11 Install upper front longitudinal member   AR62.20-P-1286NKB
Fig 2: Identifying Side Portal Frame (210 589 17 23 00)
G07321115Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1012-13A Blind rivet 6.5 X 12.5 A 004 990 16 97
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
