Remove/install automatic transmission - AR27.10-P-0502NKB

TRANSMISSION 724.0 in MODEL 117, 156, 176, 242, 246

Illustration shows TRANSMISSION 724.0 in MODEL 246 without CODE M005 (4MATIC)

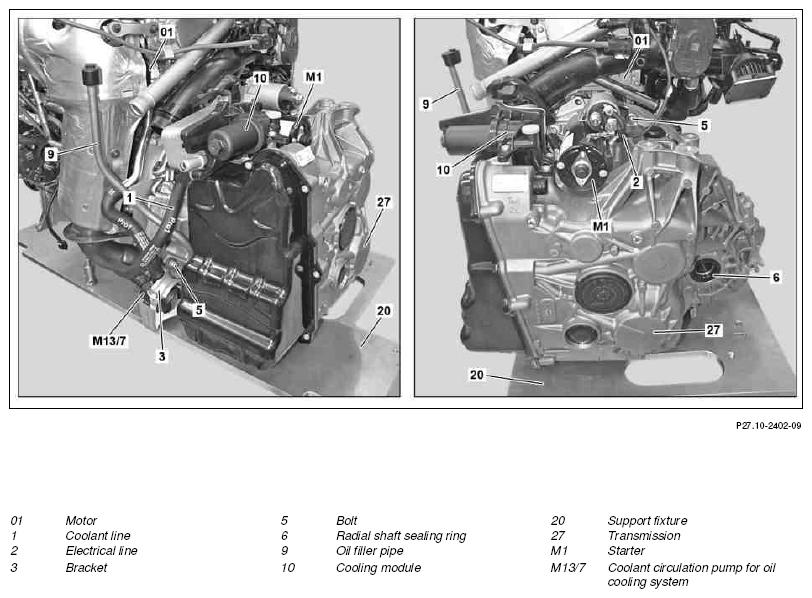

Fig 1: Automatic Transmission Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Drain oil from transmission (27)	When performing repair work or when replacing the transmission (27).
			AP27.00-P-2702NK
2	Remove engine (01) with transmission (27)	Engine 133 in model 117, 156, 176 with transmission 724.0	AR01.10-P-2401MTA
		Engine 607 in model 117, 156, 176, 246 with transmission 724.0	AR01.10-P-2401ORA
		Engine 270 in model 117, 156, 176, 242, 246.2 with transmission 724.0	AR01.10-P-2401MT
		Engine 651 in model 117, 156, 176, 246 with transmission 724.0	AR01.10-P-2401OLB
3	Secure engine (01) on support fixture (20) and lifting platform to prevent it from falling down
	000 588 03 62 00 Lifting platform		WS01.00-P-0091A
		Support fixture	Fig 3
4	Detach electrical line (2) from starter (M1)	Engine 607 in model 156 with transmission 724.0	AR15.30-P-7100ORB
		Engine 270 in model 117, 156, 176, 242, 246 with transmission 724.0 Engine 607 in model 117, 176, 246 with transmission 724.0 Engine 651 in model 117, 156, 176, 246 with transmission 724.0	AR15.30-P-7100NKB
		Engine 133 in model 117, 156, 176 with transmission 724.0	AR15.30-P-7100-03MTA
		Engine 133 in model 117, 156, 176 with transmission 724.0 nut, connection for terminal designation 50	*BA15.30-P-1002-01J
		Engine 607 in model 117, 156, 176, 246 with transmission 724.0 nut, connection for circuit 50	*BA15.30-P-1003-01R
		Engine 651 in model 117, 156, 176, 246 with transmission 724.0 nut, circuit 50 connection	*BA15.30-P-1003-01P
5	Detach coolant line (1) of oil cooling system coolant circulation pump (M13/7) from cooling module (10)
6	Detach oil cooling system coolant circulation pump (M13/7) from transmission (27) together with bracket (3)		AR27.55-P-7380NKB
7	Attach lifting eye to transmission (27)	Lifting device	Fig 2
8	Attach boom crane to lifting eye on transmission (27) and lift transmission (27) slightly	This prevents the transmission (27) from dropping down when the bolts (5) are removed.
9	Turn front guide and rear bracket of support fixture (20) back under transmission (27)
10	Unscrew bolts (5) and remove transmission (27) from engine (01) using boom crane	When removing/installing the transmission (27), take care not to damage the pilot bearing on the crankshaft.
		Bolt, transmission to engine	*BA27.10-P-1017-04F
	Clean
11	Clean pins of dual clutch on splined shaft and guide	Assembly cleaner	*BR00.45-Z-1028-04A
12	Apply thin coating of long-life grease around pins of dual clutch on splined shaft	Long-life grease	*BR00.45-Z-1001-06A
13	Check dowel pins in transmission (27) for damage and firm seating, replace if necessary
14	Detach starter (M1) from transmission (27)	When replacing the transmission (27).
		Engine 607 in model 156 with transmission 724	AR15.30-P-7100ORB
		Engine 133 in model 117, 156, 176 with transmission 724.0	AR15.30-P-7100MTA
		Engine 270 in model 117, 156, 176, 242, 246 with transmission 724.0 Engine 607 in model 117, 176, 246 with transmission 724.0 Engine 651 in model 117, 156, 176, 246 with transmission 724.0	AR15.30-P-7100NKB
15	Detach cooling module (10) from transmission (27)	When replacing the transmission (27).
			AR27.55-P-1500NKB
16	Detach oil filler pipe (9) from transmission (27)	When replacing the transmission (27).
			AR27.10-P-7010NKB
	Check
17	Check radial shaft sealing rings (6) of front axle shafts for damage and replace if necessary		AR27.40-P-0210NKB
18	Check ring gear on clutch plate for damage and if necessary replace clutch plate		AR03.30-P-8001NKB
19	Install in the reverse order
20	Check transmission oil level and correct if necessary		AR27.00-P-0100NKB
		Follow the prescribed work procedure exactly and observe the Specifications for Operating Fluids. The transmission (27) will otherwise be damaged.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
21	Perform engine test run; during test run, check that engine (01) and transmission (27) are functioning correctly and are not leaking

Fig 2: Lifting Device (711 589 00 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Support Fixture (246 589 00 62 00)

Courtesy of MERCEDES-BENZ USA
