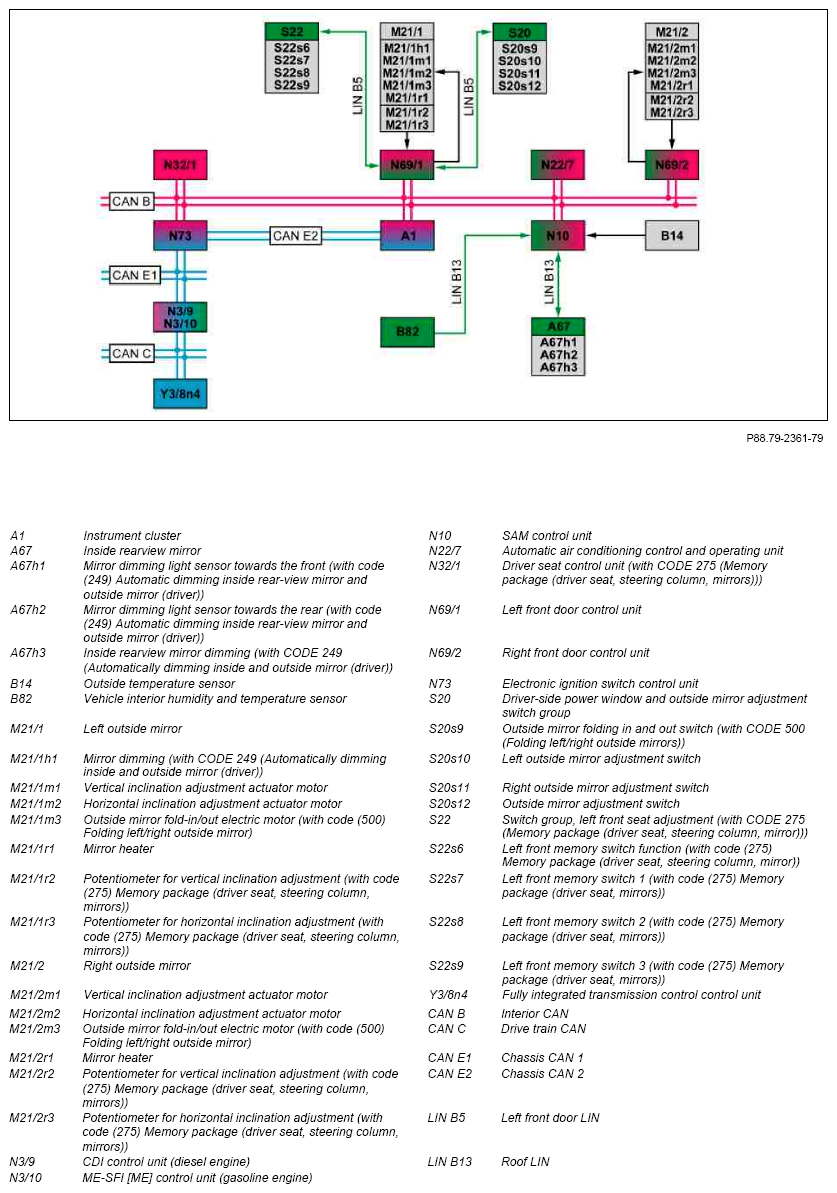

Electric mirror, function - GF88.79-P-0006GR
MODEL 166 up to model year 2016
Electric mirror, general
The electric mirror function contains the following partial functions, which are described in separate documents:
- Mirror lens adjustment left/right outside mirror, function
- Heat left/right outside rearview mirrors function
- Park position for passenger side outside mirror function (with CODE 275 (Memory package (driver seat, steering column, mirror)))
- Fold left/right outside mirror, function (with code (500) Folding left/right outside mirror)
- Automatically dimming outside mirrors and inside rearview mirror, function (with code (249) Automatically dimming inside rearview mirror and outside mirror (driver))
- Garage door opener function (with CODE 232 (Garage door opener with frequency 284-390 MHz) or CODE 231 (Garage door opener))
| Mirror lens adjustment left/right outside mirror, function | GF88.79-P-2008GR | |
| Heat left/right outside rearview mirrors function | GF88.79-P-2000GR | |
| Passenger-side outside mirror park position, function | MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) |
GF88.79-P-2006GR |
| Fold left/right outside mirror, function | MODEL 166 up to model year 2016 with CODE 500 (Folding left/right outside mirrors) |
GF88.79-P-2002GR |
| Automatic dimming outside mirror and inside rearview mirror, function | MODEL 166 up to model year 2016 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror (driver)) |
GF88.79-P-2010GR |
| Garage door opener, function | MODEL 166 up to model year 2016 with CODE 231 (Garage door opener) MODEL 166 up to model year 2016 with CODE 232 (Garage door opener with frequency 284-390 MHz) |
GF68.05-P-0001GR |
