Remove/install steering wheel - AR46.10-P-0100NKB

MODEL 117, 156, 176, 242, 246

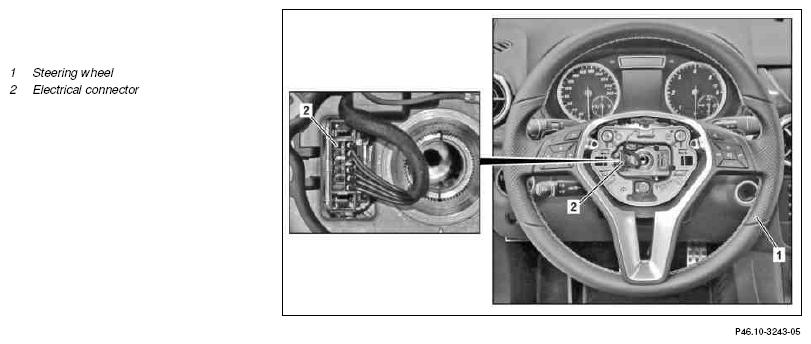

Fig 1: Steering Wheel Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Turn front wheels to straight-ahead position and move steering wheel to center position
2	Detach airbag unit from steering wheel (1)		AR91.60-P-0660EL
3	Remove center bolt from steering wheel (1); counterhold steering wheel (1) when doing so	Install new center bolt.
		Screw/bolt, steering wheel to steering shaft	*BA46.10-P-1001-02F
4	Disconnect electrical connector (2) from steering wheel (1)
5	Remove steering wheel (1)	Align the recesses of the serrations in the steering wheel (1) with the markings on the steering shaft.
6	Install in the reverse order
	Check
7	Conduct a road test	Check turn signal cancellation: If displacement is more than one tooth, problem-free canceling of flashers is not guaranteed. Check supplemental restraint system indicator lamp: The supplemental restraint system (SRS) indicator lamp should not light up when the steering wheel is turned to its full-lock position in either direction. Check position of the steering wheel (1): If the steering wheel (1) is crooked, adjust it by max. one tooth.

STEERING WHEEL

Number	Designation		MODEL 117	MODEL 156
BA46.10-P-1001-02F	Screw/bolt, steering wheel to steering shaft	Nm	80	80

STEERING WHEEL

Number	Designation		MODEL 242	MODEL 176, 246
BA46.10-P-1001-02F	Screw/bolt, steering wheel to steering shaft	Nm	80	80
