ME-SFI idle, function - GF07.61-P-2006M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

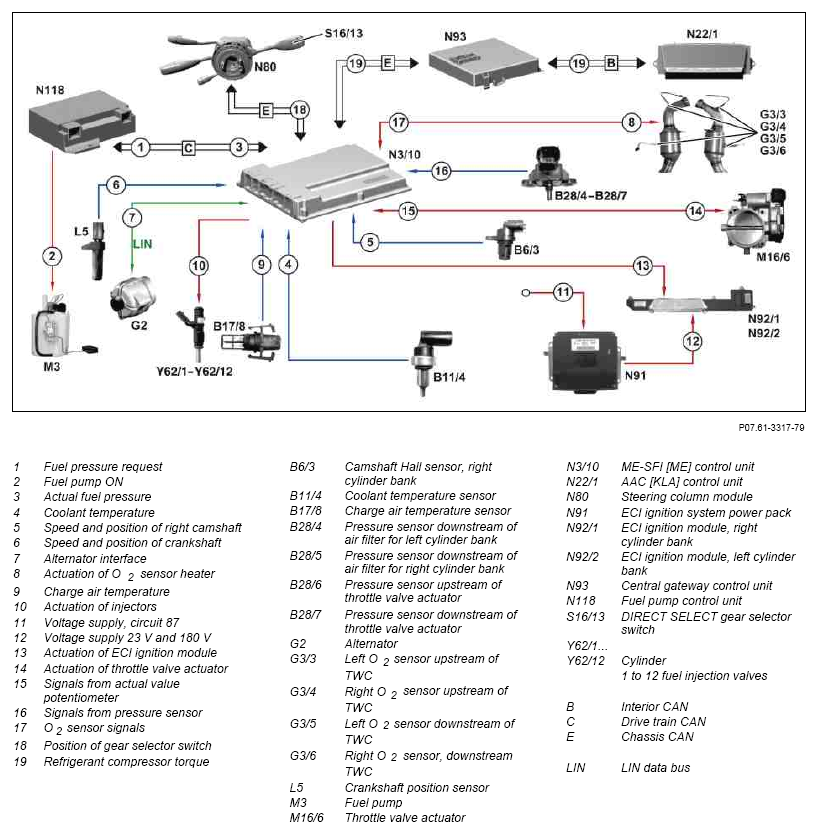

Shown is neutral for model 216, 221
| ME fuel supply, function | Model 215, 220 with engine 275.950 Model 230 with engine 275.951/954 Model 240 with engine 285.950 |
GF07.61-P-3004M | |
| Model 215, 220 with engine 275.980 Model 230 with engine 275.981 Model 240 with engine 285.980 |
GF07.61-P-3004MA | ||
| Model 216, 221 with engine 275.953/982 | GF07.61-P-3004MS | ||
| ME-SFI ignition system, function | GF15.12-P-0001M | ||
| ECI ignition system, function | GF15.15-P-3000M | ||
| ME-SFI post-start enrichment, function | GF07.61-P-3011M | ||
| ME-SFI warm-up control, function | GF07.61-P-3022M | ||
| ME-SFI idle speed control, function | GF30.22-P-0003M | ||
| Fan control, function | GF07.61-P-3023M | ||
| Air injection, function | GF14.30-P-3012M | ||
| Fuel evaporation control system, function | GF47.30-P-3013M | ||
| Purge control valve actuation, function | GF07.61-P-3013M | ||
| ME-SFI electronic accelerator, function | GF30.20-P-3012M | ||
| Electronic accelerator pedal emergency running mode, function | GF30.20-P-4026M | ||
| ME-SFI lambda control, function | GF07.61-P-4022M | ||
| Engine oil information, function | GF07.61-P-3026M | ||
| Diagnosis fault memory, ME-SFI function | GF07.61-P-2004M | ||
| ME-SFI catalytic converter heating-up, function | GF07.61-P-3032M | ||
| ME-SFI fuel pump actuation, function | GF07.61-P-3012M | ||
| ME-SFI alternator interface function | GF07.61-P-3003M | ||
| Correction programming, function | GF07.61-P-3031M | ||
| Turbocharging, function | GF09.00-P-2000M | ||
| Purge system with leak test function | For |
GF47.30-P-3016M |
