Remove/install fuel level sensor - AR47.10-P-7000CW
MODEL 204 with ENGINE 156, 271, 272, 274, 276
MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278

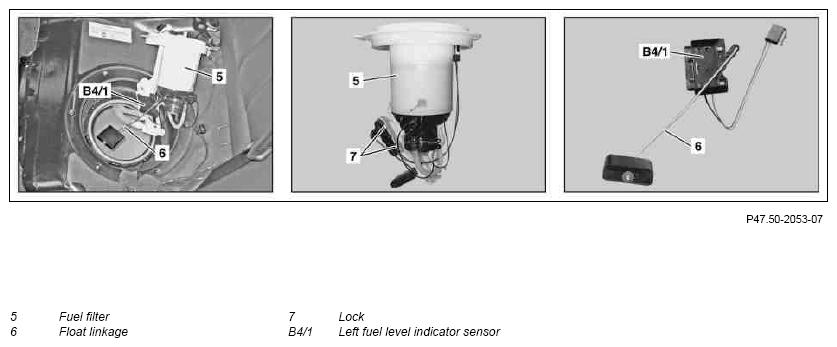

Fig 1: Identifying Fuel Level Sensor Remove/Install Components - Shown On Model 204 With Engine 272 (1 Of 2)
Shown on model 204 with engine 272

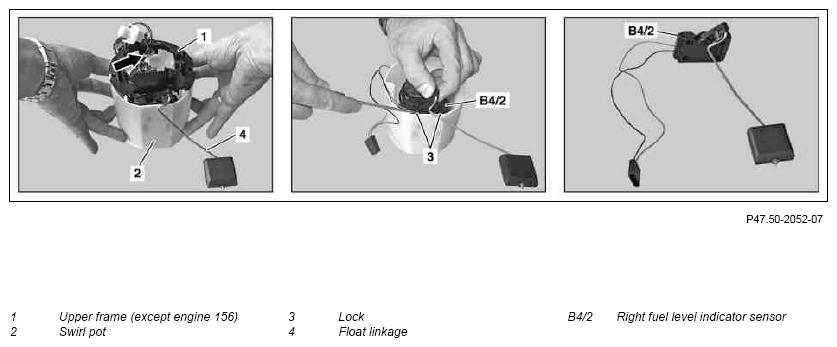

Fig 2: Identifying Fuel Level Sensor Remove/Install Components - Shown On Model 204 With Engine 272 (2 Of 2)
Shown on model 204 with engine 272
| Remove/install | |||
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Remove fuel pump | MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 MODEL 204.3 with ENGINE 156, 271, 276 MODEL 204.9 with ENGINE 272, 274, 276 MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 |
AR47.20-P-5710CW |
| 2 | Remove upper frame (1) from swirl pot (2) | Except engine 156 Do not get electrical feed lines caught in moving parts. The feed lines can be damaged otherwise. |
|
| 3 | Lead electrical feed lines for right fuel level indicator sensor (B4/2) out of retaining clip (arrow) on the upper frame (1) | ||
| 4 | Unlatch locks (3) using a screwdriver and pull RH fuel level indicator sensor (B4/2) out of the swirl pot (2) | Handle the right fuel level indicator sensor (B4/2) with care. The float linkage (4) can be deformed otherwise. |
|
| 5 | Install in the reverse order | ||
| 6 | Pull fuel filter (5) with attached fuel lines out of left chamber of the fuel tank | ||
| MODEL 204 with ENGINE 156, 271, 272, 274, 276 | AP47.20-P-0780CWZ | ||
| MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 Handle fuel filter (5) with LH fuel level indicator sensor (B4/1) carefully. The float linkage (4) can be deformed otherwise. |
AP47.20-P-0780EW | ||
| 7 | Unlock and detach electrical connection for LH fuel level indicator sensor (B4/1) from fuel filter (5) | Do not get electrical feed lines caught in moving parts and ensure correct routing of the electrical feed lines. Deflection of the float is impaired otherwise. |
|
| 8 | Disengage locks (7) and pull left tank fuel level indicator sensor (B4/1) out of the bracket | ||
| 9 | Install in the reverse order |
