Overall Network (GVN) Function - GF00.19-D-0001H
MODEL 906
Shown with engine 646, with transmission 722.6, with code (EP5) CD changer, with code (ED5) Parameterizable special module (PSM), with code (E43) Trailer hitch socket, with code (H12) Auxiliary heater (warm water), with code (HZ9) Heater booster, diesel, with code (HH2) Electric warm air auxiliary heater, with code (EZ8) Parktronic system (PTS), with code (T55) Electric actuator for right sliding door, with code (T56) Electric actuator for left sliding door, with code (LD0) Dome lamp with reading lights for driver/front passenger, with code (EH3) Universal preinstallation for networked mobile phone, with code (FY9) Keyless entry + slide, with code (J19) Automatic 1 day/2 driver tachograph (EC), with code (RY2) Tire pressure monitor for front and rear axle and with code (EN8) Sound 50 APS radio or with code (EN4) COMAND with TMC interface and with code (ZG1) All-wheel drive, engageable, with code (ZG3) Engageable all-wheel drive with gear reduction or with code (ZG4) Permanent all-wheel drive with gear reduction

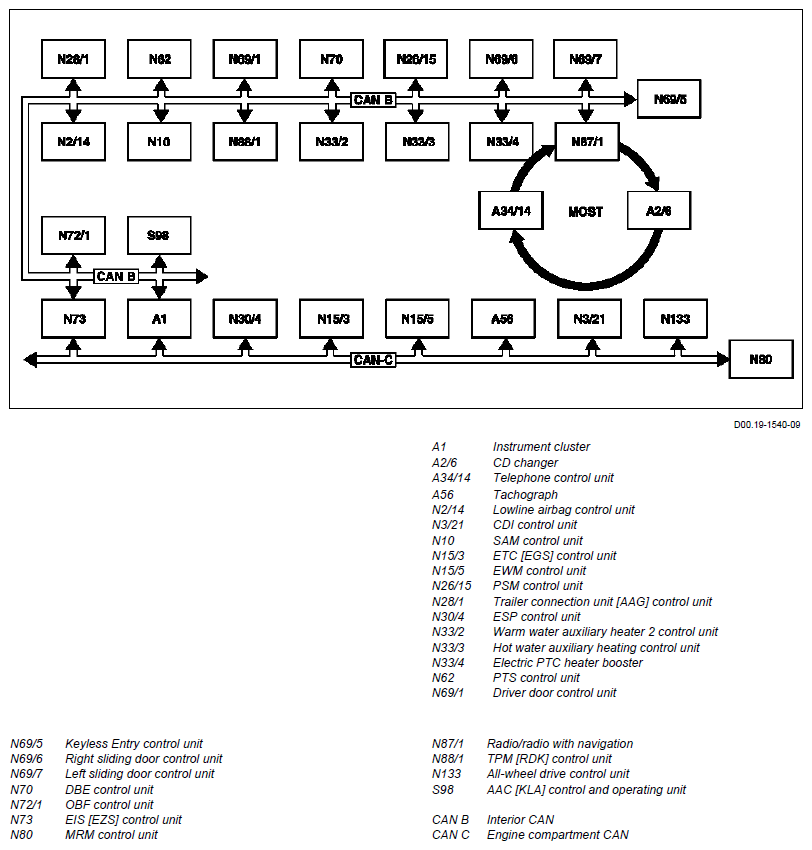

3 data bus systems are essentially responsible for the overall network (GVN):
- Interior CAN
- Engine compartment CAN
- Media Oriented System Transport (MOST)
Following data bus systems are also used:
- Compressed Natural Gas (CNG) CAN (CAN CNG), in vehicles with code (MZ2) Natural gas engine M271 or code (MZ8) NGT engine EEV
- Body manufacturer CAN (CAN ABH), in vehicles with code (ED5) Parameterizable special module (PSM) or with code (ED8) Preinstallation for parameterizable special module (PSM)
- Drive train sensor CAN (CAN I) on vehicles with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version
- Drivetrain LIN (LIN C1) on vehicles with engine 651 or with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version
The operational field is differentiated as follows:
- The interior CAN links the control units of comfort functions and lighting devices in the vehicle (e.g. power window, heated rear window, exterior lights and interior illumination).
- The engine compartment CAN links the control units of the drive and chassis systems (e.g. engine timing, transmission control).
- The MOST networks the control units for the audio, communications and navigation systems (e.g. telephone, with code (EH3) Universal preinstallation for networked mobile phone) via a fiber optic cable.
- The Compressed Natural Gas (CNG) CAN, in vehicles with code (MZ2) Natural gas engine M271 or code (MZ8) NGT engine EEV, connects the ME-SFI [ME] control unit (N3/29) to the CNG interface control unit (N118/2).
- The drive train sensor CAN on vehicles with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version connects the CDI control unit (N3/30) to the AdBlue® control unit (N141)
- The body manufacturer CAN, in vehicles with code (ED5) Parameterizable special module (PSM) or with code (ED8) Preinstallation for parameterizable special module (PSM), connects the PSM control unit to the control units of the various body manufacturers.
- On vehicles with engine 651, the drivetrain LIN connects the CDI control unit (N3/28) to the alternator with LIN bus (G2/7) and to the glow output stage (N14/5).
- On vehicles with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with c ode (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version, the drivetrain LIN connects the CDI control unit to the alternator with LIN bus and to the glow output stage (N14/3).
More stringent requirements are placed on the engine compartment CAN with regard to interference resistance, e.g. against electromagnetic radiation, and the data transfer rate.
Data exchange between the data bus systems
The following control units form the interfaces between the data bus systems:
- The EZS control unit is connected to the interior CAN and engine compartment CAN.
- The radio/radio with navigation, with code (EN8) Sound 50 APS radio or with code (EN4) COMAND with TMC interface, forms the interface between the interior CAN and MOST.
- In vehicles with code (MZ2) Natural gas engine M271 or code (MZ8) NGT engine EEV, the ME-SFI [ME] control unit forms the interface between the engine compartment CAN and the Compressed Natural Gas (CNG) CAN.
- In vehicles with code (ED5) Parameterizable special module (PSM) or with code (ED8) Preinstallation for parameterizable special module (PSM), the PSM control unit forms the interface between the interior CAN and the body manufacturer CAN.
- On vehicles with engine 651, the CDI control unit forms the interface between the engine compartment CAN and the drivetrain LIN.
- On vehicles with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with c ode (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version, the CDI control unit forms the interface between the engine compartment CAN and the drivetrain LIN and between the engine compartment CAN and the drive train sensor CAN.
The EZS control unit also forms the interface between the control units at the interior CAN and at the engine compartment CAN and the line to the 16-pin diagnostic socket (X11) for Star Diagnosis.
Instrument cluster
Although the instrument cluster is connected to both the interior CAN and the engine compartment CAN and exchanges data with both data bus systems, it is not used as an interface (gateway).
With all control units of the interior CAN, the international standardized network management "OSEK" (Open Systems and the Corresponding Interfaces for Automotive Electronics) is used.
| Engine 651 | GF07.16-D-6000HD | |
| Engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version * Only for USA |
GF07.16-D-6000HU | |
| Component description for exhaust after-treatment control unit | Engine 642 with code (MG5) Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 rpm, with code (MH1) Low-pollutant engine EPA 10/CARB, with code (ZU8) USA national version * Only for USA |
GF14.40-D-3030HU |
| ETC [EGS] control unit, component description | With transmission 722.6 | GF27.19-D-4018H |
| Fully integrated transmission control unit, component description | With transmission 722.9 | GF27.60-D-5165HAG |
| Electronic selector lever module control unit, component description | With transmission 722.6/9 | GF27.19-D-5300H |
| Component description of transfer case control unit | MODEL 906 with code (ZG1) Engageable all-wheel drive or with code (ZG3) Gear reduction for all-wheel drive or with code (ZG4) Permanent all-wheel drive with gear reduction |
GF28.19-D-3200HA |
| Trailer connection unit [AAG] control unit, component description | With code (E43) Trailer hitch socket | GF31.19-D-4200H |
| Model 906 with code (E40) Trailer socket 7-pin | GF31.19-D-4200HU | |
| Tire pressure monitor control unit, component description | With code (RY2) Tire pressure monitor for front and rear axles | GF40.15-D-5124H |
| Component description for ESP control unit | GF42.45-D-5118H | |
| Component description for parameterizable special module (PSM) control unit | With CODE (ED5) parameterizable special module (PSM) With code (ED8) Preinstallation for parameterizable special module (PSM) |
GF54.21-D-5005H |
| Upper control panel control unit, component description | GF54.21-D-6040H | |
| Component description for steering column tube module | GF54.21-D-6050H | |
| Front SAM control unit with fuse and relay module, component description | GF54.21-D-6070H | |
| Overhead control panel (DBE) control unit, component description | With CODE (LD0) Dome lamp with reading lamp on driver/passenger side | GF54.21-D-6080H |
| Instrument cluster, component description | With code (JK3) instrument cluster, high end with speedometer with Km scale | GF54.30-D-6000HH |
| Except code (JK3) instrument cluster, high end with speedometer with Km scale | GF54.30-D-6000HL | |
| Modular tachograph (MTCO), component description | With code (J19) Automatic 1 day/2 driver tachograph (EC) | GF54.61-D-4103H |
| Parktronic system (PTS) control unit, component description | Model 906with code (EZ8) Parktronic system (PTS) | GF54.65-D-5000H |
| Electric load compartment sliding door (E-LST) control unit, component description | Model 906 with code (T55) Electrical actuation for right sliding door Model 906 with code (T56) Electrical actuation for left sliding door Model 906 with code (T50) Electrical closing assist for right sliding door Model 906 with code (T51) Electrical closing assist for left sliding door |
GF72.29-D-4014H |
| Driver-side front door control unit, component description | GF72.29-D-6000H | |
| Component description for electronic ignition lock control unit (EZS) | Except code (ZU8) USA national version | GF80.57-D-6000H |
| with CODE (ZU8) National version for USA * Only for USA |
GF80.57-D-6000HU | |
| Keyless Entry control unit, component description | Model 906 With code (FY9) Keyless entry + slide With code (T55) Electrical actuation for right sliding door Model 906 With code (FY9) Keyless entry + slide With code (T56) Electrical actuation for left sliding door |
GF80.61-D-4205H |
| Radio/navigation unit, component description | With code (EN8) Sound 50 APS radio | GF82.61-D-4111H |
| With code (EN4) COMAND with TMC interface | GF82.61-D-4111HA | |
| CD player with changer component description | with CODE (EP5) CD changer | GF82.64-D-3112H |
| Universal Cell phone Interface (UPCI [UHI]) control unit, component description | With code (EH3) Universal preinstallation for networked cell phone | GF82.70-D-5101H |
| Heater operating unit, component description | Except code (HH9) Regulated air conditioning, (Tempmatic) | GF83.20-D-4005H |
| Tempmatic ™ control and operating unit, component description | With code (HH9) Regulated air conditioning (Tempmatic) | GF83.40-D-4015H |
| PTC heater booster control unit, component description | With code (HH2) Warm air auxiliary heater, electric | GF83.70-D-4064H |
| STH control unit, component description | With code (H12) Auxiliary heater (warm water) Model 906 with code (HZ5) 10 kW warm water auxiliary heater with timer |
GF83.70-D-4200H |
| ZUH [HB] control unit, component description | With code (HZ9) Heater booster, diesel Model 906with code (HZ5) 10 kW warm water auxiliary heater with timer |
GF83.70-D-4215H |
