Keyless Entry, Function Schematic - GF80.61-D-0006-01H

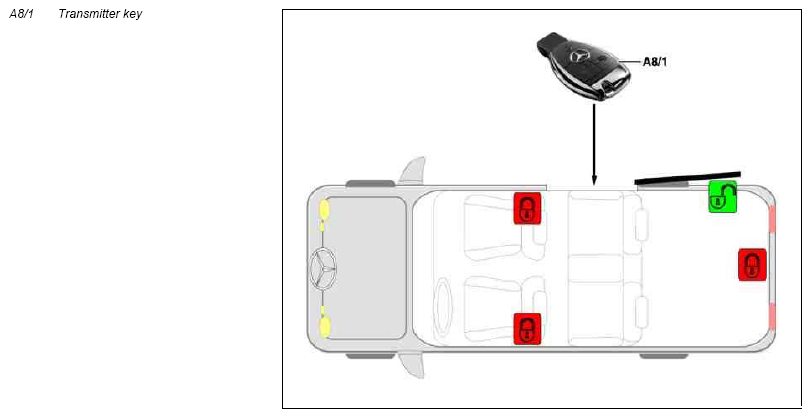

Example 1:
- Keyless Entry system activated
- Transmitter key approaches electric load compartment sliding door (E-LST)
- The distance between the transmitter key and the vehicle is approx. 4 m
The E-LST is unlocked and opened.

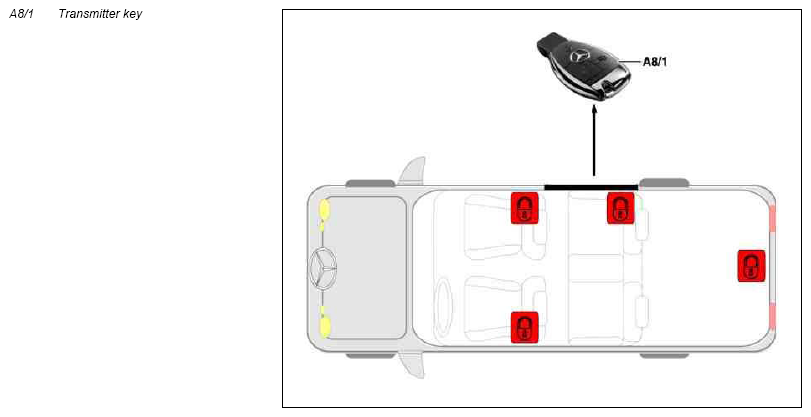

Example 2:
- Keyless Entry system activated
- Remove transmitter key from E-LST
- The distance between the transmitter key and the vehicle is approx. 1 m
The E-LST is closed and the vehicle locked.

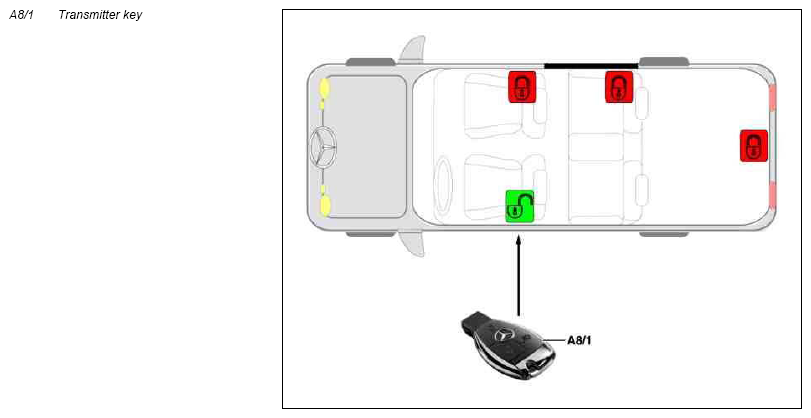

Example 3:
- Keyless Entry system activated
- Transmitter key approaches driver door
- The distance between the transmitter key and the vehicle is approx. 0.5 m
The driver door is unlocked.

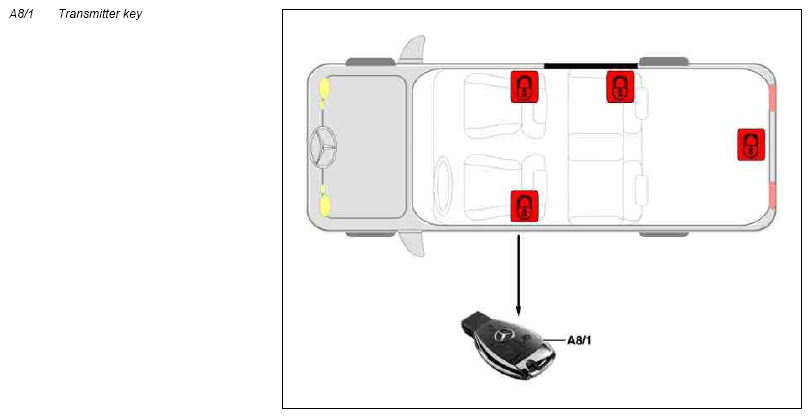

Example 4:
- Keyless Entry system activated
- Remove transmitter key from driver door
- The distance between the transmitter key and the vehicle is approx. 1 m
The vehicle is locked.
