Check And Adjust Front Axle Toe - Ar40.20-D-0323L

Model 906.131/133/135/23/63/73 with code C15 (Vehicle lowering) except code A50 (Front axle with increased load capacity) except code ZG1 (Engageable all-wheel drive) except code ZG2 (Permanent all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction) except code ZG4 (Permanent all-wheel drive with gear reduction) except code ZU7 (National version for Canada) except code ZU8 (National version for USA)

MODIFICATION NOTES

11.9.15 Toe with front axle load 1650 kg or handlebar angle -2.6 ° *BE40.20-N-1002-07IA
11.9.15 Toe with front axle load 1600 kg or handlebar angle -2.2 ° *BE40.20-N-1003-07IA
11.9.15 Toe with front axle load 1550 kg or handlebar angle -1.7 ° *BE40.20-N-1004-07IA
11.9.15 Toe with front axle load 1500 kg or handlebar angle -1.3 ° *BE40.20-N-1005-07IA
11.9.15 Toe with front axle load 1450 kg or handlebar angle -0.7 ° *BE40.20-N-1006-07IA
11.9.15 Toe with front axle load 1400 kg or handlebar angle -0.2° *BE40.20-N-1007-07IA
11.9.15 Toe with front axle load 1400 kg or handlebar angle -0.2 ° *BE40.20-N-1008-07IA
11.9.15 Toe with front axle load 1300 kg or handlebar angle 1.1 ° *BE40.20-N-1009-07IA
11.9.15 Toe with front axle load 1250 kg or handlebar angle 1.8 ° *BE40.20-N-1010-07IA
11.9.15 Track with front axle load 1200 kg or handlebar angle 2.5 ° *BE40.20-N-1011-07IA
G10887269Courtesy of MERCEDES-BENZ USA
G10887270Courtesy of MERCEDES-BENZ USA
INSPECT Check
1 Observe general information on chassis alignment   AR40.20-D-0201H
2.1 Determine front-axle level using electronic inclinometer When measuring with electronic inclinometer.
  AR40.20-D-6870H
2.2 Determine front-axle level through actual front-axle load When measuring without electronic inclinometer.

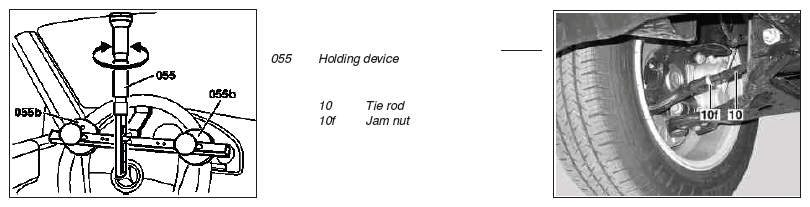

3 Fix steering wheel in center position IMPORTANT Swivel the sun visor to the side and install the SPECIAL TOOL holding device (055).
SPECIAL TOOL Tensioning nut Fig 1
SPECIAL TOOL Retainer device Fig 2
4 Check center position of steering gear and steering wheel IMPORTANT The steering gear is centered when the marking on the cap is aligned with the mark on the control valve housing.
Adjust steering wheel by max. one tooth if necessary, see:
↓
Remove/install steering wheel
  AR46.10-D-0100E

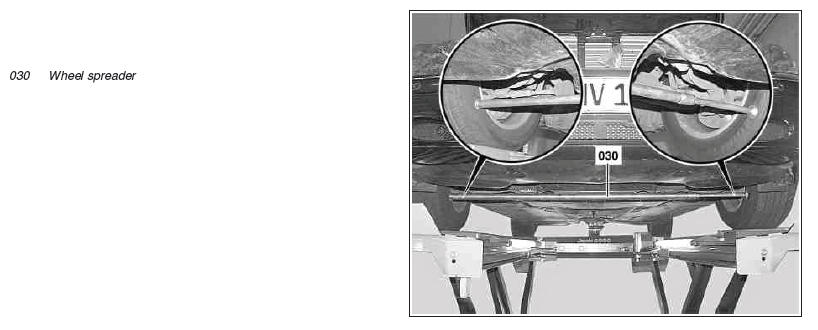

5 Insert wheel spreader (030) IMPORTANT Install wheel spreader (030) at the front on the inside of the wheel in the direction of travel.
IMPORTANT The elastic bearing of the lower transverse control arm and steering linkage produces a correspondingly large toe value that is reduced to the correct dimension in the ready-to-drive condition.
6 Perform wheel alignment check   AR40.20-D-0200H
IMPORTANT Compare the corresponding front-axle level specified toe value against the actual values from the wheel alignment check.
7 Check toe through the front-axle level and assign to value in table IMPORTANT Use the determined front-axle level (steering wheel angle or front-axle load) to look up the specified value for the toe on the table sheet and note down this value.
Compare the specified toe value against the actual values from the wheel alignment check. If the actual values deviate from the specified values the camber must be adjusted.
IMPORTANT While doing so, note the wear on the tire outer shoulder and select the corresponding adjustment value.
If the difference between the inner tread depth groove and the outer tread depth groove is greater than 2 mm, then there is major tire wear.
Permissible difference in front axle toe between right and left side of vehicle *BE40.20-N-1001-07IA
Toe for front-axle load 1200 kg or steering angle 2.5° *BE40.20-N-1011-07IA
Toe for front-axle load 1250 kg or steering angle 1.8° *BE40.20-N-1010-07IA
Toe for front-axle load 1300 kg or steering angle 1.1° *BE40.20-N-1009-07IA
Toe for front-axle load 1350 kg or steering angle 0.4° *BE40.20-N-1008-07IA
Toe for front-axle load 1400 kg or steering angle -0.2° *BE40.20-N-1007-07IA
Toe for front-axle load 1450 kg or steering angle -0.7° *BE40.20-N-1006-07IA
Toe for front-axle load 1500 kg or steering angle -1.3° *BE40.20-N-1005-07IA
Toe for front-axle load 1550 kg or steering angle -1.7° *BE40.20-N-1004-07IA
Toe for front-axle load 1600 kg or steering angle -2.2° *BE40.20-N-1003-07IA
Toe for front-axle load 1650 kg or steering angle -2.6° *BE40.20-N-1002-07IA
  Adjust
8 Loosen jam nuts (10f), adjust track to determined specified value by turning tie rods (10) and tighten jam nuts (10f) again IMPORTANT The table designation "Initial adjustment" means: After replacement of suspension components. The table designation "Correction" means: For toe values that are not permissible.
IMPORTANT Check that the bellows are not twisted after adjusting the toe-in.
IMPORTANT Observe permissible difference in front axle toe-in between right and left sides of the vehicle.
Permissible difference in front axle toe between right and left side of vehicle *BE40.20-N-1001-07IA
Toe for front-axle load 1200 kg or steering angle 2.5° *BE40.20-N-1011-07IA
Toe for front-axle load 1250 kg or steering angle 1.8° *BE40.20-N-1010-07IA
Toe for front-axle load 1300 kg or steering angle 1.1° *BE40.20-N-1009-07IA
Toe for front-axle load 1350 kg or steering angle 0.4° *BE40.20-N-1008-07IA
Toe for front-axle load 1400 kg or steering angle -0.2° *BE40.20-N-1007-07IA
Toe for front-axle load 1450 kg or steering angle -0.7° *BE40.20-N-1006-07IA
Toe for front-axle load 1500 kg or steering angle -1.3° *BE40.20-N-1005-07IA
Toe for front-axle load 1550 kg or steering angle -1.7° *BE40.20-N-1004-07IA
Toe for front-axle load 1600 kg or steering angle -2.2° *BE40.20-N-1003-07IA
Toe for front-axle load 1650 kg or steering angle -2.6° *BE40.20-N-1002-07IA
TORQUE SPECIFICATION Lock nut at ball head *BA46.40-N-1003-06D
9 Remove holding device (055)
10 Remove wheel spreader (030)
INSPECT Check
11 Carry out final measurement   AR40.20-D-0200H
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1001-07IA Permissible difference in front axle toe between right and left side of vehicle ∠° 0° 05'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1002-07IA Toe for front-axle load 1650 kg or steering angle -2.6° Total toe min. ∠° -0° 06'
max. ∠° +0° 14'
Toe per wheel Value not OK Initial adjustment, correction ∠° + 0° 02'
Value OK with tire outside shoulder wear ∠° +0° 02'
Value OK with severe tire outside shoulder wear ∠° -0° 03'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1003-07IA Toe for front-axle load 1600 kg or steering angle -2.2° Total toe min. ∠° -0° 04'
max. ∠° +0° 16'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 03'
Value OK with tire outside shoulder wear ∠° +0° 03'
Value OK with severe tire outside shoulder wear ∠° -0° 02'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1004-07IA Toe for front-axle load 1550 kg or steering angle -1.7° Total toe min. ∠° 0° 00'
max. ∠° +0° 20'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 05'
Value OK with tire outside shoulder wear ∠° +0° 05'
Value OK with severe tire outside shoulder wear ∠° 0° 00'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1005-07IA Toe for front-axle load 1500 kg or steering angle -1.3° Total toe min. ∠° +0° 02'
max. ∠° +0° 22'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 06'
Value OK with tire outside shoulder wear ∠° +0° 06'
Value OK with severe tire outside shoulder wear ∠° +0° 01'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1006-07IA Toe for front-axle load 1450 kg or steering angle -0.7° Total toe min. ∠° +0° 06'
max. ∠° +0° 26'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 08'
Value OK with tire outside shoulder wear ∠° +0° 08'
Value OK with severe tire outside shoulder wear ∠° +0° 03'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1007-07IA Toe for front-axle load 1400 kg or steering angle -0.2° Total toe min. ∠° +0° 10'
max. ∠° +0° 30'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 10'
Value OK with tire outside shoulder wear ∠° +0° 10'
Value OK with severe tire outside shoulder wear ∠° +0° 05'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1008-07IA Toe for front-axle load 1350 kg or steering angle 0.4° Total toe min. ∠° +0° 14'
max. ∠° +0° 34'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 12'
Value OK with tire outside shoulder wear ∠° +0° 12'
Value OK with severe tire outside shoulder wear ∠° +0° 07'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1009-07IA Toe for front-axle load 1300 kg or steering angle 1.1° Total toe min. ∠° +0° 18'
max. ∠° +0° 38'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 14'
Value OK with tire outside shoulder wear ∠° +0° 14'
Value OK with severe tire outside shoulder wear ∠° +0° 09'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1010-07IA Toe for front-axle load 1250 kg or steering angle 1.8° Total toe min. ∠° +0° 22'
max. ∠° +0° 42'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 16'
Value OK with tire outside shoulder wear ∠° +0° 16'
Value OK with severe tire outside shoulder wear ∠° +0° 11'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation MODEL 906.131/133/135/23/63/73 with CODE C15 except CODE A50
BE40.20-N-1011-07IA Toe for front-axle load 1200 kg or steering angle 2.5° Total toe min. ∠° +0° 38'
max. ∠° +0° 58'
Toe per wheel Value not OK Initial adjustment, correction ∠° +0° 24'
Value OK with tire outside shoulder wear ∠° +0° 24'
Value OK with severe tire outside shoulder wear ∠° +0° 19'
STEERING LINKAGE

Number Designation Model 906
BA46.40-N-1003-06D Lock nut at ball head Nm 65
Fig 1: Tensioning Nut (906 589 00 21 00)
G10887271Courtesy of MERCEDES-BENZ USA
Fig 2: Retainer Device (129 589 01 21 00)
G10887272Courtesy of MERCEDES-BENZ USA
