Remove/Install Low-Pressure Fuel Pressure Sensor - Ar07.04-D-2000W
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 906

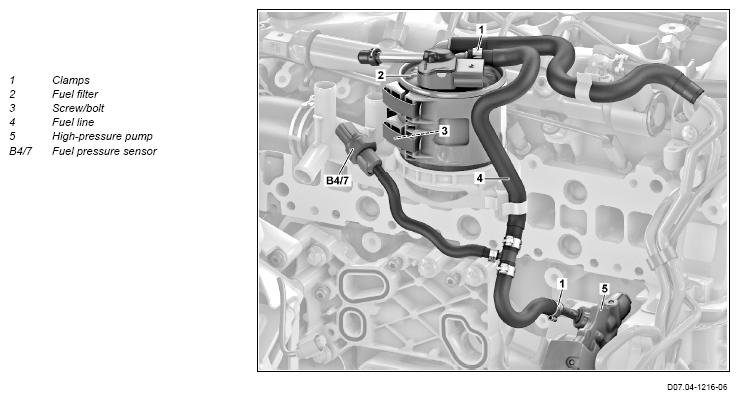

Shown on model 906 with engine 651 as of facelift 2013
| - | Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A |
| Remove/install | |||
| 1 | Remove charge air distributor | ENGINE 651.955/956/957 in MODEL 906 | AR09.41-D-8681WE |
| 2 | Unfasten clamps (1) and detach fuel line (4) from fuel filter (2) and high-pressure pump (5) | - | |
| 3 | Remove screw/bolt (3) and remove fuel pressure sensor (B4/7) with fuel line (4) | - | |
| Check | |||
| 4 | Check fuel line (4) | For reinstallation of the fuel pressure sensor (B4/7). |
- |
| 5 | Install in the reverse order | ||
| - | Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 6 | Perform engine test run and check the fuel system for leaktightness in the area of the fuel filter (2) and the high-pressure pump (5) | - | - |
