Remove/Install Injection System Control Unit - Ar07.08-D-7008WE
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Engine 651.955/956/957 in model 906 except code XM0 (Facelift)
| Information on preventing damage to electronic components due to electrostatic discharge | - | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Connect diagnostic system and read out variant coding of the CDI control unit (N3/28) and store | When replacing the CDI control unit (N3/28) | - |
| - | - | AD00.00-D-2000-04SD | |
| - | - | - | |
| 2 | Switch off ignition and remove transmitter key | - | - |

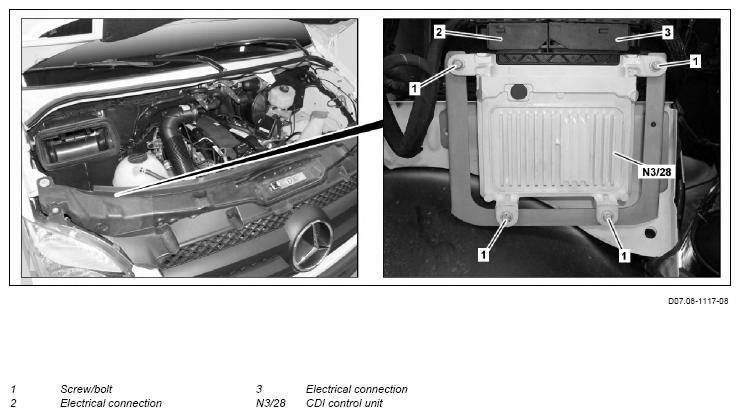

| 3 | Unlock electrical connections (2, 3) and remove from CDI control unit (N3/28) | - | - |
| 4 | Remove screw/bolts (1) and CDI control unit (N3/28) | - | - |
| 5 | Install in the reverse order | ||
