Remove/Install Hot Film Mass Air Flow Sensor - Ar07.07-D-1453SD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 906
Modification notes
| 09.10.2014 | Initialization of the hot film MAF sensor (B2/5, B2/7, B2/12 or B2/14), added. | Operation step 6 |
| Remove/install | |||

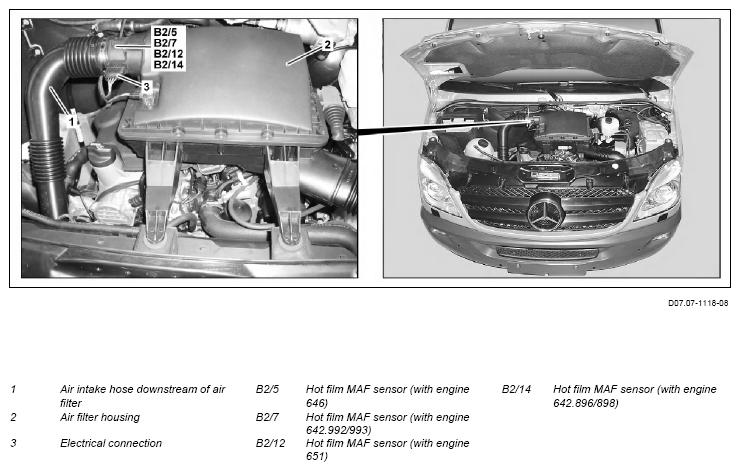

| 1 | Remove air intake hose downstream of air filter (1) on hot film MAF sensor (B2/5, B2/7, B2/12 or B2/14) | ENGINE 651 in MODEL 906 | - |
| 2 | Disconnect electrical connection (3) on hot film MAF sensor (B2/5, B2/7, B2/12 or B2/14) | - | - |
| 3 | Remove screw/bolts on hot film MAF sensor (B2/5, B2/7, B2/12 or B2/14) | - | - |
| 4 | Remove hot film MAF sensor (B2/5, B2/7, B2/12 or B2/14) from the air filter housing (2) | - | |
| 5 | Install in the reverse order | ||
| 6 | Connect diagnostic system, clear fault memory and perform initialization of the hot film MAF sensor (B2/5, B2/7, B2/12 or B2/14) with diagnostic system | When replacing the hot film MAF sensor (B2/5 B2/7, B2/12 or B2/14) | - |
| - | - | AD00.00-D-2000-04SD | |
