Remove/Install Exhaust Gas Temperature Probe - Ar07.04-D-0071WE

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651.955/956/957 in MODEL 906

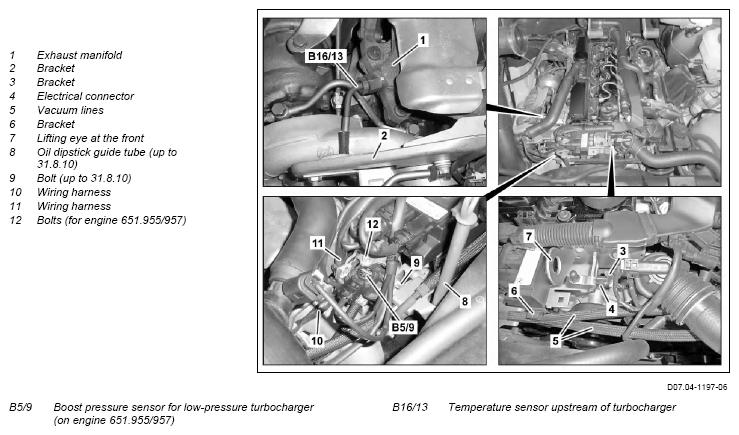

Shown on vehicle with engine 651.957 to 31.8.10

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine trim panel	-	AR01.10-D-2405WE
2	Remove air intake pipe	-	AR09.10-D-8131WE
3	Unclip vacuum lines (5) from bracket (6)	-	-
4	Unlock electrical connector (4) and remove from bracket (3)	-	-
5	Disconnect electrical connector (4)	-	-
6	Unscrew bolt (9) from oil dipstick tube (8)	In vehicles up to 31.8.10	-
7	Unscrew bolt (12) from low-pressure turbocharger boost pressure sensor (B5/9) and remove low-pressure turbocharger boost pressure sensor (B5/9) from front lifting eye (7)	On engine 651.955/957	-
8	Expose electric wiring harness (11)	-	-
9	Expose electrical wiring harness (10) from temperature sensor upstream of turbocharger (B16/13)	-	-
10	Guide electrical wiring harness (10) out below front lifting eye (7)	Observe installation position. Route electrical wiring harness (10) without chafing.	-
11	Unscrew temperature sensor upstream of turbocharger (B16/13) from exhaust manifold (1)	Coat thread on temperature sensor upstream of turbocharger (B16/13) with paste	-
-	-		*BA07.04-N-1011-01B
-	-	Hot lubricating paste	*BR00.45-Z-1005-06A
12	Unscrew temperature sensor upstream of turbocharger (B16/13), guide electrical wiring harness (10) out below bracket (2)	-	-
13	Install in the reverse order

SENSORS

Number	Designation		Engine 651
BA07.04-N-1011-01B	Exhaust temperature sensor on exhaust manifold	Nm	45

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
