Remove/Install Exhaust Back Pressure Sensor - Ar07.04-D-0009WE
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651.955/956/957 in MODEL 906
| Remove/install | |||
| 1 | Remove engine trim panel | - | AR01.10-D-2405WE |

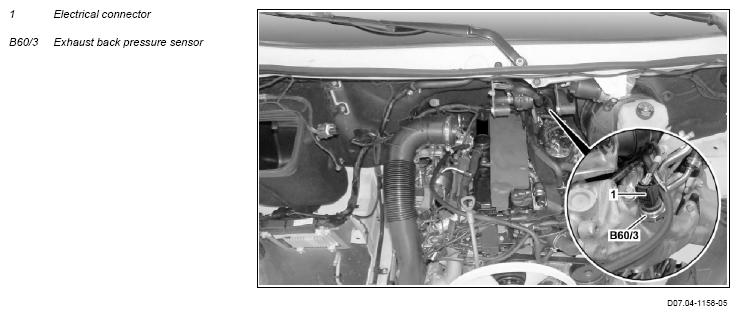

| 2 | Disconnect electrical connector (1) | - | - |
| 3 | Unscrew exhaust back pressure sensor (B60/3) | Socket wrench 12-point gotis://A_02_01.0 |
- |
| - | - | *BA14.20-N-1012-01H | |
| 4 | Install in the reverse order | ||
| - | Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 5 | Perform an engine test run and check exhaus system in the area of exhaust back pressure sensor (B60/3) for leaks | - | - |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA14.20-N-1012-01H | Exhaust gas recirculation pressure sensor | Nm | 25 |
