Remove/Install Diesel Fuel Injection System Control Unit - Ar07.08-D-7009WE
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Engine 651.955/956/957 in model 906.### #N up to 678203 with code XM0 (Facelift)
Engine 651.955/956/957 in model 906.### #P up to 294758 with code XM0 (Facelift)
| - | Information on preventing damage to electronic components due to electrostatic discharge | - | AH54.00-P-0001-01A |
| Remove/install | |||

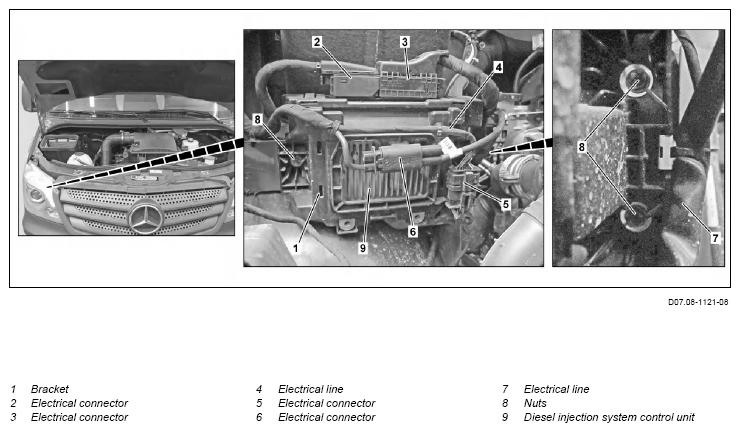

| 1 | Connect diagnostic system and read out data from the diesel injection system control unit (9) | When replacing the diesel injection system control unit (9). | - |
| - | - | AH54.00-P-0001-01A | |
| - | - | - | |
| 2 | Switch off ignition and remove transmitter key | - | - |
| 3 | Unlock electrical connections (2, 3) and remove from diesel injection system control unit (9) | - | - |
| 4 | Remove electrical lines (4, 7) from bracket (1) | - | - |
| 5 | Remove electrical connections (5, 6) from bracket (1) | - | - |
| 6 | Unscrew nuts (8) | - | - |
| 7 | Remove bracket (1) with diesel injection system control unit (9) out of the engine compartment | - | - |

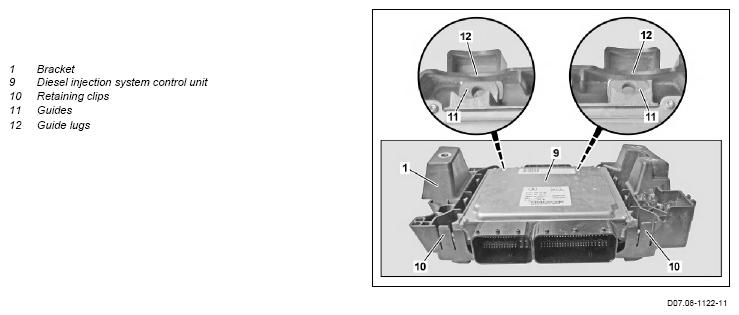

| 8 | Unlock retaining lugs (10) and remove diesel injection system control unit (9) from bracket (1) | When replacing the diesel injection system control unit (9). | - |
| - | - | - | |
| 9 | Install in the reverse order | ||
