Component Description For Rail Pressure Sensor - GF07.04-D-6210HD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651.955/956/957 in MODEL 906
with CODE (XZ1) Model generation 1
with CODE (MZ0) Blue EFFICIENCY

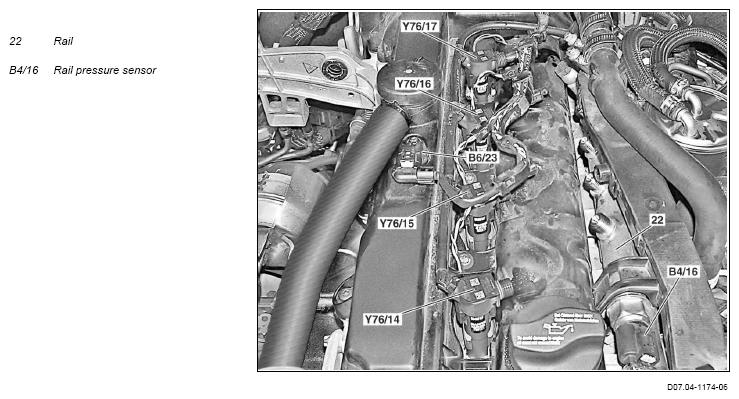

Location
Illustrated on model 906
The rail pressure sensor is located in the rail opposite the flywheel side.
Task
The rail pressure sensor detects the current rail pressure and passes on the change in resistance to the CDI control unit (N3/28).
Input and output signals
Direct output signals
- Change in resistance for monitoring rail pressure on the CDI control unit
Function
The applied rail pressure influences the position of a metal diaphragm, which is equipped with strain-gauge resistors. The change in location of a diaphragm alters the electrical resistance of the strain-gauge resistors. This change in resistance causes a voltage signal which is evaluated by the CDI control unit to detect pressure.
