Component Description For Quantity Control Valve - GF07.05-D-6010HD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651.955/956/957 in MODEL 906
with CODE (XZ1) Model generation 1
with CODE (MZ0) Blue EFFICIENCY

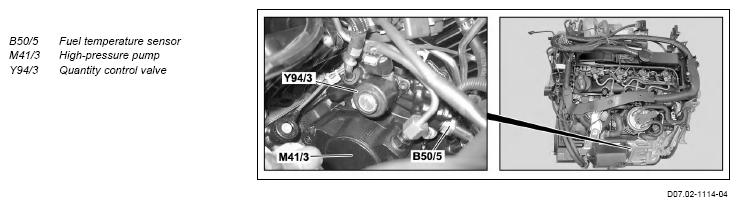

Location
Illustrated on model 906
The quantity control valve is located on the high-pressure pump.
Task
- Regulation of the fuel feed to the pump elements of the high-pressure pump
- Interruption of the fuel feed to the pump elements of the high-pressure pump when the engine is switched off
- Regulation of the rail pressure takes place in conjunction with the pressure regulator valve (Y74/5), rail pressure sensor (B4/16) and CDI control unit (N3/28)
Input and output signals
Direct input signals
- Actuation by means of a pulse width modulation (PWM) signal produced by the CDI control unit
Function
The fuel delivered by the fuel pump with fuel level sensor (M3/5) (for model 906) passes into the high-pressure pump flange and is led from there over the fuel temperature sensor to the quantity control valve and to the fuel pressure relief valve. The quantity control valve regulates the fuel quantity which is fed into the pump elements through an annular passage, depending on the signal from the CDI control unit.
