Component Description For Intake Manifold Pressure Sensor - GF07.04-D-6062HD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 651.955/957 in MODEL 906
with CODE (XZ1) Model generation 1
with CODE (MZ0) Blue EFFICIENCY

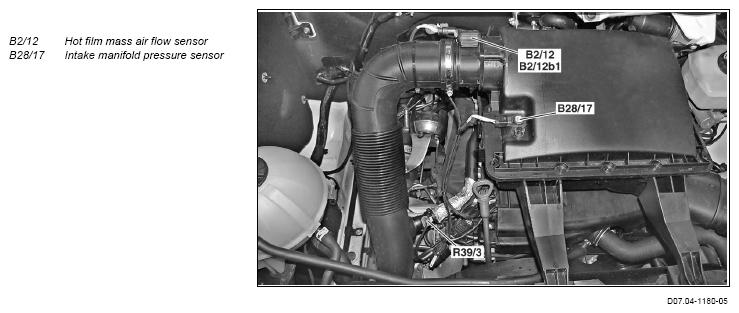

Location
Shown on engine 651.955
The intake manifold pressure sensor is located on the air filter housing next to the hot film MAF sensor.
Task
The intake manifold pressure sensor detects the vacuum (absolute pressure) in the intake tract and transmits the change in resistance to the CDI control unit (N3/28).
Input and output signals
Direct output signals
- Change in resistance at the CDI control unit
Function
The air pressure in the air filter distorts a measurement membrane with stretch resistors. The subsequent change in resistance results in a voltage which is used by the CDI control unit for determining the air pressure in the intake manifold.
