Component Description For Boost Pressure Sensor - GF07.04-D-6053HDA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651.955/957 in MODEL 906

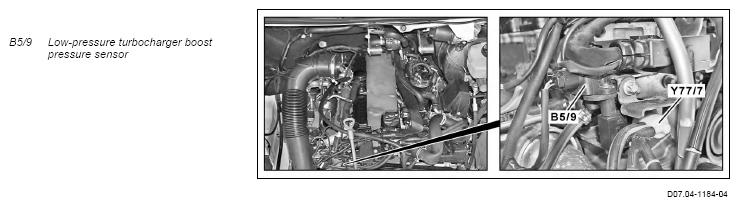

Location

The low-pressure turbocharger boost pressure sensor is located on the right at the cylinder head.

Courtesy of MERCEDES-BENZ USA

Task

The low-pressure turbocharger boost pressure sensor detects the charge air pressure generated by the low-pressure turbocharger and transmits the change in resistance to the CDI control unit (N3/28).

The charge air pressure of the low-pressure turbocharger is transferred from the tapping point in the charge air pipe through a pressure line to the low-pressure turbocharger boost pressure sensor.

Input and output signals

Direct output signals

Resistance change to CDI control unit for charge-air pressure determination

Function

The respective charge air pressure distorts a measurement membrane with strain resistors. The change in resistance results in a voltage which is interpreted by the CDI control unit for determining the charge-air pressure of the low-pressure turbocharger.
