Remove/install camshaft Hall sensor - AR15.10-P-2000W
ENGINES 276 in MODEL 172
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

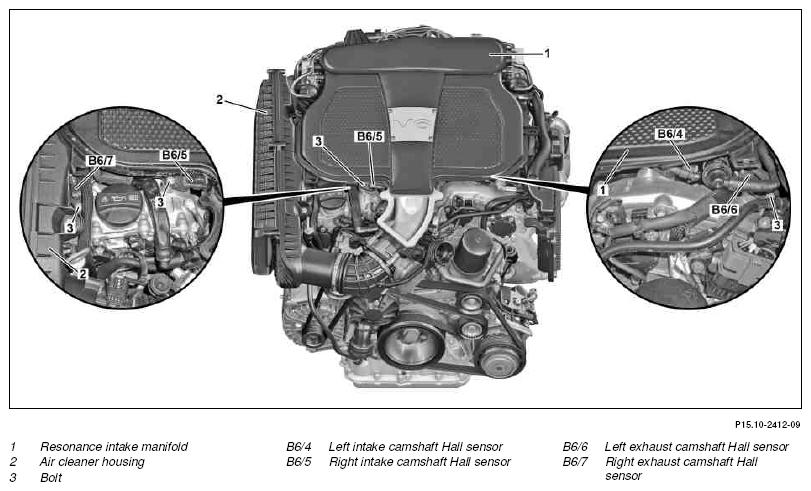

| 1 | Remove front engine cover | ||
| 2 | Remove resonance intake manifold (1) | When removing Hall sensors (B6/4, B6/6) on the left cylinder head | AR09.20-P-1961W |
| 3 | Remove air filter housing (2) from cylinder head cover | When removing the RH exhaust camshaft Hall sensor (B6/7) | |
| *BA09.10-P-1001-01M | |||
| *BA09.10-P-1002-01M | |||
| 4 | Remove connector from the respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) | ||
| 5 | Remove bolt (3) and pull respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) out of the cylinder head cover | ||
| *BA15.10-P-1006-03E | |||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | AD00.00-P-2000-04A | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run, checking the engine for proper operation and leaks |
AIR FILTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 9 |
