Remove/install driver kneebag - AR91.60-P-0200RK
MODEL 231
with CODE 294 (Kneebag)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Connect ground line to starter battery and to on-board electrical system battery | AR54.10-P-0003RK | |

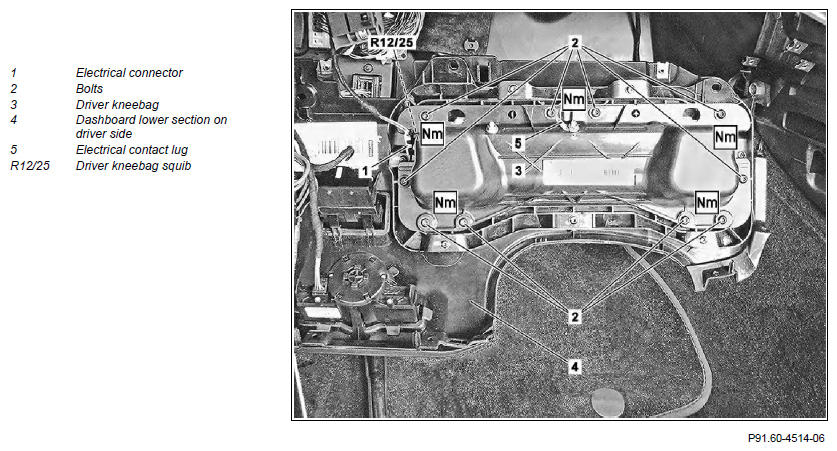

| 3 | Remove instrument panel bottom section on driver side (4) | AR68.10-P-1505RK | |
| 4 | Release and disconnect electrical connector (1) from driver kneebag squib (R12/25) | Fig 2 | |
| 5 | Remove screw/bolts (2) | *BA91.60-P-1016-01M | |
| 6 | Remove driver kneebag (3) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check and erase vehicle fault memory using the diagnostic system | When replacing driver kneebag (3). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 231 | |
|---|---|---|---|
| BA91.60-P-1016-01M | Screw/bolt, kneebag to instrument panel (below the cover under instrument panel) | Nm | 3 |
