Command Control Unit Connector End View (A40/3)

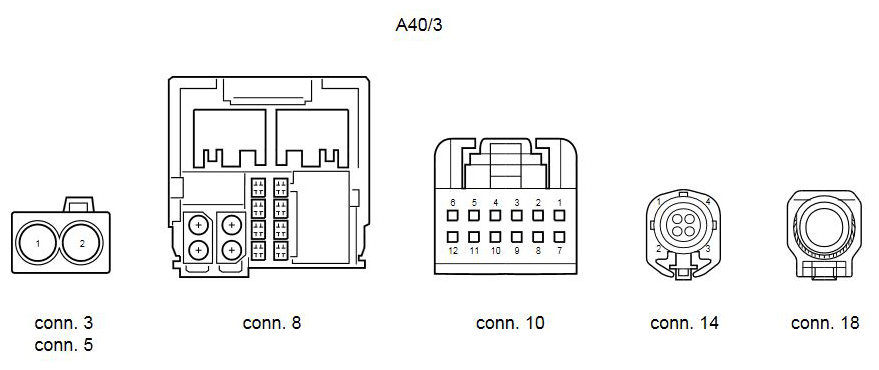

Fig 1: Command Control Unit Connector End View (A40/3)

G11064441

Courtesy of MERCEDES-BENZ USA
