Remove/install injection system control unit - AR07.08-P-7008MLJ
ENGINES 157, 278 in MODEL 166

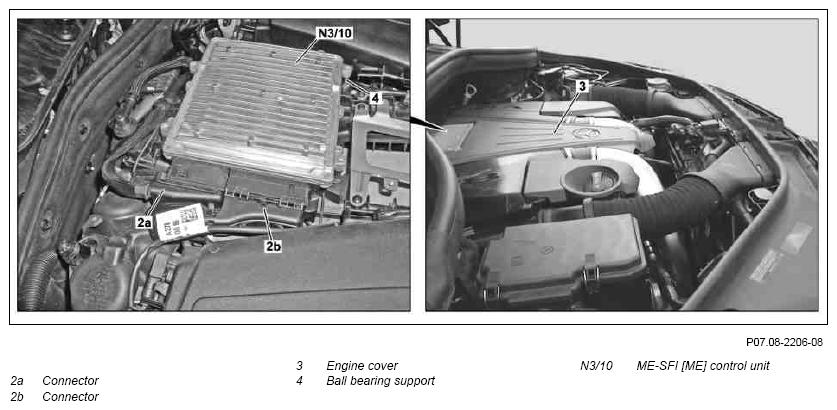

Shown on model 166 with engine 278
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out version coding of the ME-SFI [ME] control unit (N3/10) | AD00.00-P-2000-04A | |
| 2 | Switch off ignition | ||
| 3 | Remove engine cover (3) | ||
| 4 | Remove ME-SFI [ME] control unit (N3/10) with ball bearing support (4) upwards out of the mount on intake manifold | ||
| 5 | Detach plugs (2a, 2b) and unplug from ME-SFI [ME] control unit (N3/10) | ||
| 6 | Detach ball-type support braces (4) from ME-SFI [ME] control unit (N3/10) | ||
| *BA07.08-P-1001-01A | |||
| 7 | Install in the reverse order | ||
| 8 | Perform sensor rotor adaptation using STAR DIAGNOSIS |
|
|
| 9 | Release transport protection on ME-SFI [ME] control unit (N3/10) | ||
| 10 | Personalize and activate ME-SFI [ME] control unit (N3/10) | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run |
CONTROL UNIT
| Number | Designation | Engines 157, 278 | |
|---|---|---|---|
| BA07.08-P-1001-01A | Ball head support on control unit | Nm | 4 |
