Central Gateway Control Module Connector End View (N93)

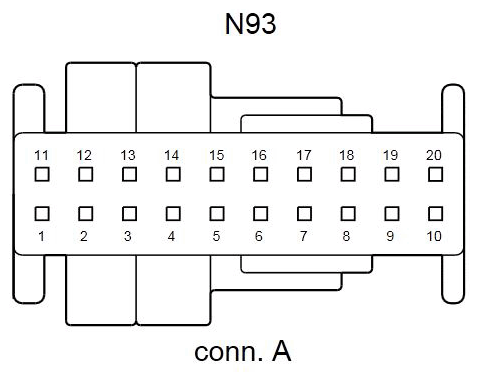

Fig 1: Central Gateway Control Module Connector End View (N93)

G11072686

Courtesy of MERCEDES-BENZ USA
