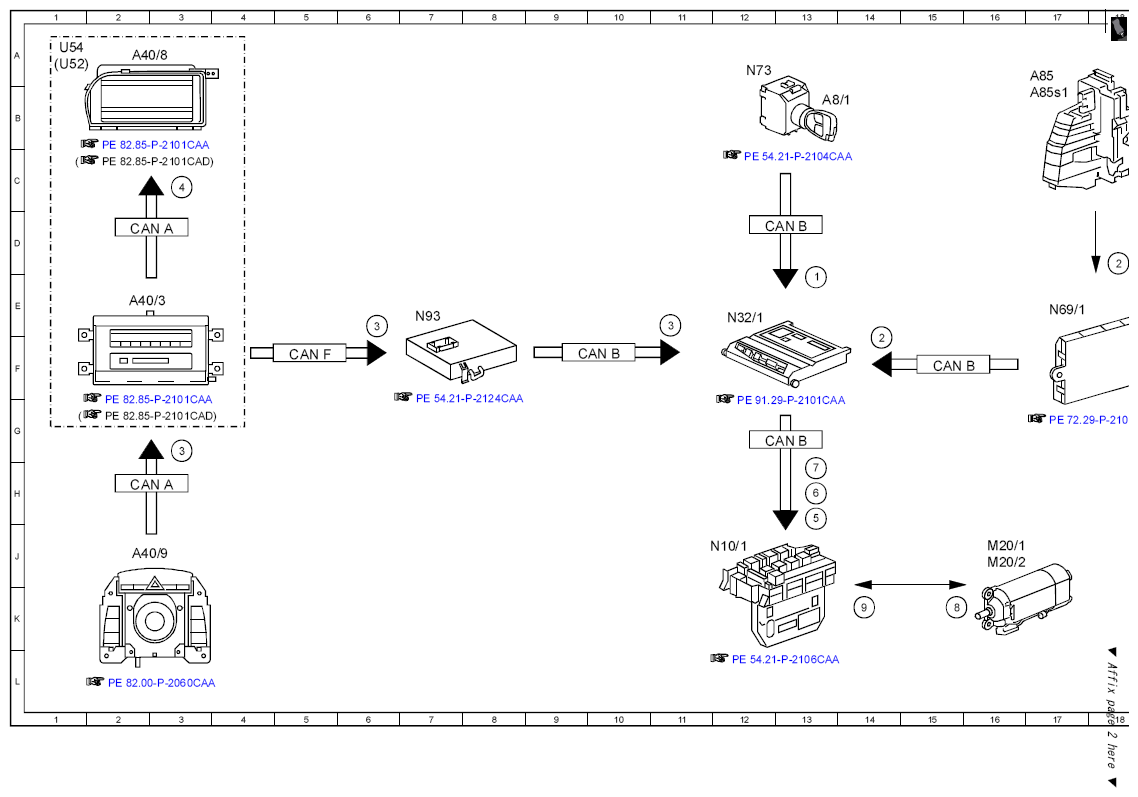

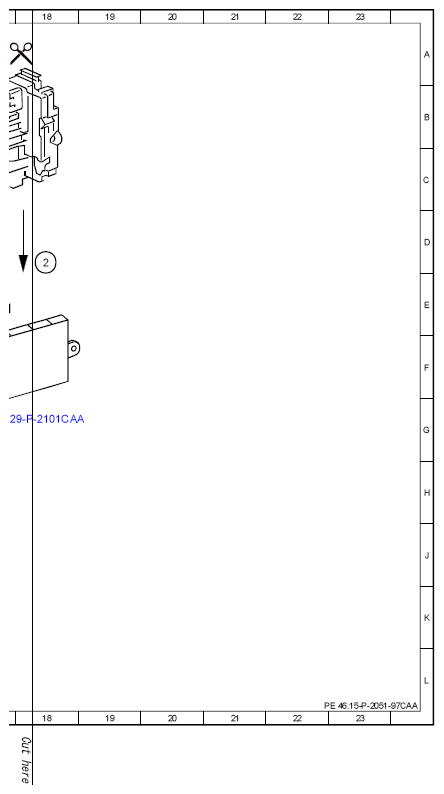

Electrical function schematic for steering column easy entry/exit adjustment - PE46.15-P-2051-97CAA
MODEL 216.3 as of model year 09 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13E |
| 2 | Door rotary tumbler switch, status | 14F |
| 2 | Door rotary tumbler switch, status | 18D |
| 3 | Easy entry/exit, status | 6E |
| 3 | Easy entry/exit, status | 11E |
| 3 | Easy entry/exit, status | 3G |
| 4 | Status indication, signal | 3C |
| 5 | Move to entry/exit position, request | 13H |
| 6 | Move to driving position, request | 13H |
| 7 | Store driving position, request | 13G |
| 8 | Steering column motor, actuation | 16K |
| 9 | Steering column motor, signal | 14K |
| A40/3 | COMAND control unit | 3E |
| A40/8 | COMAND display | 2A |
| A40/9 | Front central operating unit | 2J |
| A8/1 | Transmitter key | 13B |
| A85 | Left door lock unit | 17B |
| A85s1 | Left rotary tumbler switch | 17B |
| CAN A | Telematics CAN | 3D |
| CAN A | Telematics CAN | 3H |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 13D |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 15F |
| CAN F | Central CAN | 5F |
| M20/1 | Steering column in/out motor | 16J |
| M20/2 | Steering column up/down motor | 16J |
| N10/1 | Front SAM control unit with fuse and relay module | 12J |
| N32/1 | Left front seat control unit | 12E |
| N69/1 | Left door control unit | 17E |
| N73 | EIS [EZS] control unit | 12A |
| N93 | Central gateway control unit | 7E |
| U52 | Valid for Japan | 1A |
| U54 | Valid for all except Japan | 1A |
