Remove/install regulator for alternator - AR15.40-P-5760SXA
ENGINES 157, 272, 276, 278 in MODEL 221
ENGINES 157, 278 in MODEL 216
| Remove/install | |||
| 1 | Detach ground line(s) from battery/batteries | AR54.10-P-0003SX | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove alternator (G2) | Engine 272, 273 except Engine 272.974 | AR15.40-P-5032SX |
| Engine 272.974 | AR15.40-P-5032SXH | ||
| Engine 276 | AR15.40-P-5032MMA | ||
| Engine 157, 278 | AR15.40-P-5032MMB | ||

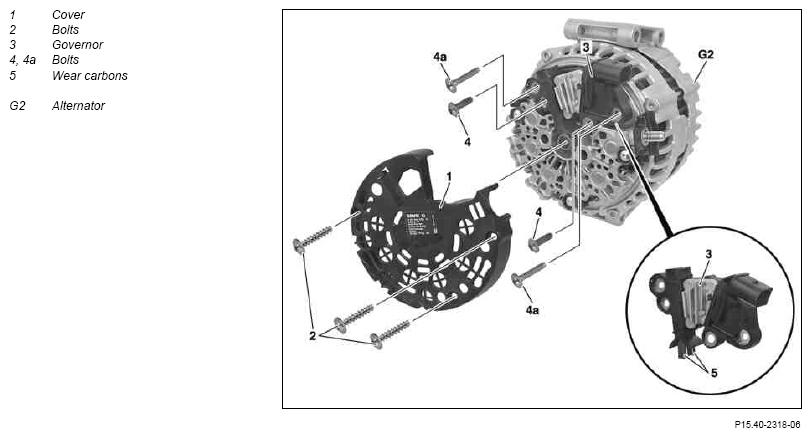

| 3 | Remove screws (2) and remove cover (1) | *BA15.40-P-1008-01F | |
| 4 | Remove bolt/nut (4, 4a) and take off control (3) | ||
| *BA15.40-P-1009-01F | |||
| 5 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 157 | Engine 272 | Engine 276 | Engine 278 | |
|---|---|---|---|---|---|---|
| BA15.40-P-1008-01F | Bolt/nut, cover to alternator | Nm | 3 | 3 | 3 | 3 |
| BA15.40-P-1009-01F | Bolt, regulator to alternator | Nm | 3 | 3 | 3 | 3 |
