Side Seat Panel Not Engaging (LI91.10-P-059372)
Publication date: 2014-07-14Reference number: LI91.10-P-059372
SIDE SEAT PANEL NOT ENGAGING
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI91.10-P-059372 Version 1, Date of Issue:
July 14, 2014
| MERCEDES-BENZ: | Model 204 up to VIN end number #A033 108 |
| DESIGN GROUP: | 91.10 Front seats |
| REASON FOR CHANGE: | Damage code update |
COMPLAINT
Side seat panel releases and no longer engages.
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|

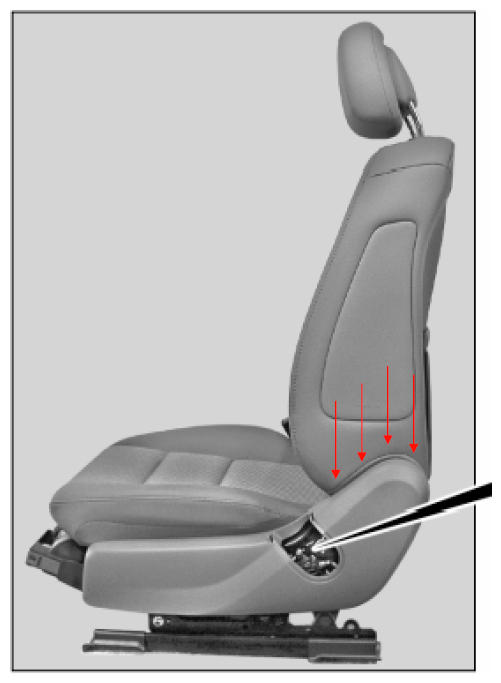

| Point at which the cover can work loose |
CAUSE
The material can change due to its properties. It becomes softer, so the clips can no longer apply the required holding force.
REMEDY
Vehicles as of VIN end number #A033108 are fitted with optimized panels as standard in series production. These can no longer work loose.
For all vehicles prior to this VIN end number, the optimized panels must be installed in pairs (inside and outside) in the event of complaints.
The following parts are required for color code 8L36 and are MADE TO ORDER/NON STOCKING parts: A20491801168L36, A20491802168L36, A20491803168L36.
PARTS
PARTS
| Part number | ES1 | ES2 | Designation | Quantity | Note | EPC | Other make part |
|---|---|---|---|---|---|---|---|
| A 204 918 05 30 | Cover, OUTER, partially electric, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 06 30 | Cover, OUTER, partially electric, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 07 30 | Cover, OUTER, fully electric with memory, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 08 30 | Cover, OUTER, fully electric with memory, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 19 30 | Cover, OUTER, USA without memory, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 20 30 | Cover, OUTER, USA without memory, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 01 16 | Reinforcement, OUTER L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 02 16 | Reinforcement, OUTER L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 09 30 | Cover, INNER, rear seat, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 10 30 | Cover, INNER, rear seat, L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 03 16 | Reinforcement, INNER L/R | 1 |
NOTE:
Observe color coding!
|
X | |||
| A 204 918 04 16 | Reinforcement, INNER L/R | 1 |
NOTE:
Observe color coding!
|
X |
WORK UNITS
WORK UNITS
| Op. no. | Operation text | Time | Damage code | Note |
|---|---|---|---|---|
| 91-7104 | COVER FOR SEAT ADJUSTER ON OUTSIDE DRIVER SEAT REPLACE | 91A0E 38 | Outer cover of electrical seat adjustment for left front seat is loose | |
| 91-7104 | COVER FOR SEAT ADJUSTER ON OUTSIDE DRIVER SEAT REPLACE | 91N0E 38 | Outer cover of electrical seat adjustment for right front seat is loose |
