Rim Designation - GF40.10-P-1010-01A

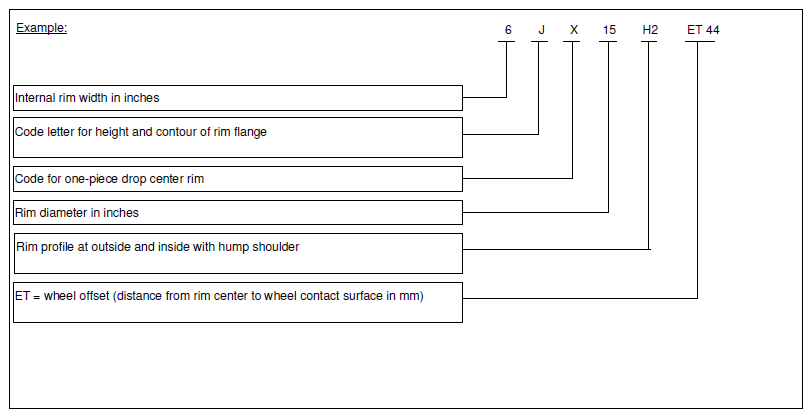

G10785619Courtesy of MERCEDES-BENZ USA

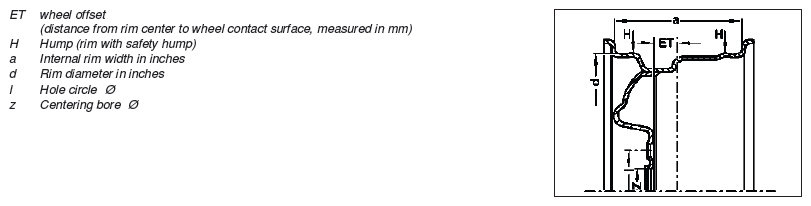

G10887170Courtesy of MERCEDES-BENZ USA

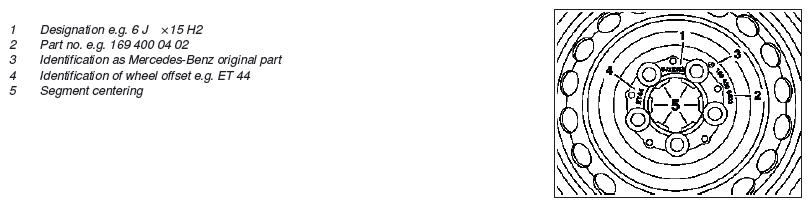

Sheet-steel disk wheel

G10887171Courtesy of MERCEDES-BENZ USA

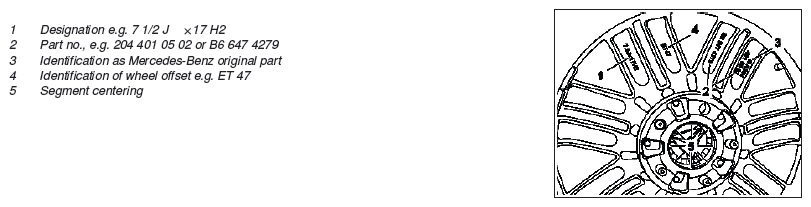

Light alloy rim

G10887172Courtesy of MERCEDES-BENZ USA
