Remove/install ignition coils - AR15.12-P-2003W
ENGINES 276 in MODEL 172
MODIFICATION NOTES
| 24.11.11 | Repair method has been revised |
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | ||
| 1 | Switch off ignition | ||

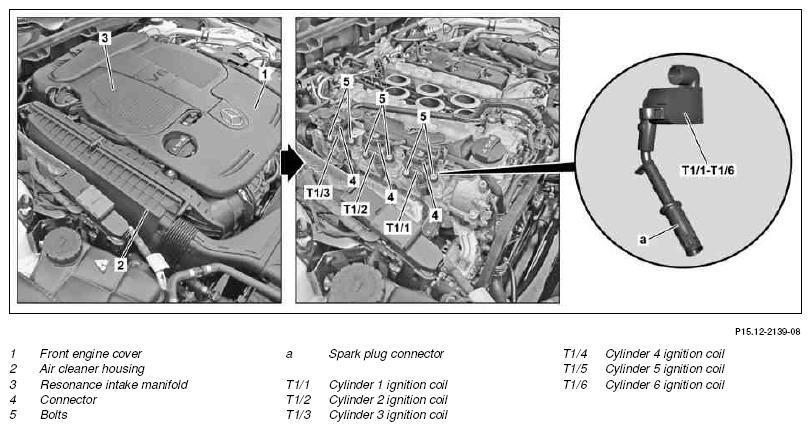

| 2 | Remove front engine cover (1) | ||
| 3 | Remove air filter housing (2). | *BA09.10-P-1001-01M | |
| *BA09.10-P-1002-01M | |||
| 4 | Detach vacuum reservoir from bracket for ME-SFI [ME] control unit | If necessary | |
| 5 | Disconnect connector (4) from ignition coils (T1/1 to T1/6) | ||
| 6 | Remove bolts (5) of ignition coils (T1/1 to T1/6) | *BA15.10-P-1001-04A | |
| 7 | Pull ignition coils (T1/1 up to T1/6) with spark plug connectors (a) upwards and out | ||
| Checking | |||
| 8 | Check ignition coils (T1/1 up to T1/6) and spark plug connectors (a) for damage and replace if necessary | ||
| 9 | Install in the reverse order | ||
| 10 | Read out fault memory with STAR DIAGNOSIS and erase if necessary | AD00.00-P-2000-04A |
IGNITION COIL
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1001-04A | Bolt, ignition coil to cylinder head cover | Nm | 9 |
AIR FILTER
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
