Remove/install alternator - AR15.40-P-5032CW
ENGINES 271 in MODEL 172, 204, 207, 212
| Remove/install | |||
| 1 | Detach ground line from battery | Model 204 | AR54.10-P-0003CW |
| Model 172 | AR54.10-P-0003W | ||
| Model 207, 212 | AR54.10-P-0003EW | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove poly-V belt | AR13.20-P-0001CW | |
| 3 | Unlock and detach connector on electrical connection circuit 61 (D+) (4) | ||
| 4 | Detach cap, unscrew nuts and remove electrical line from electrical connector circuit 30 (B+) (3) | *BA15.40-P-1002-01F | |

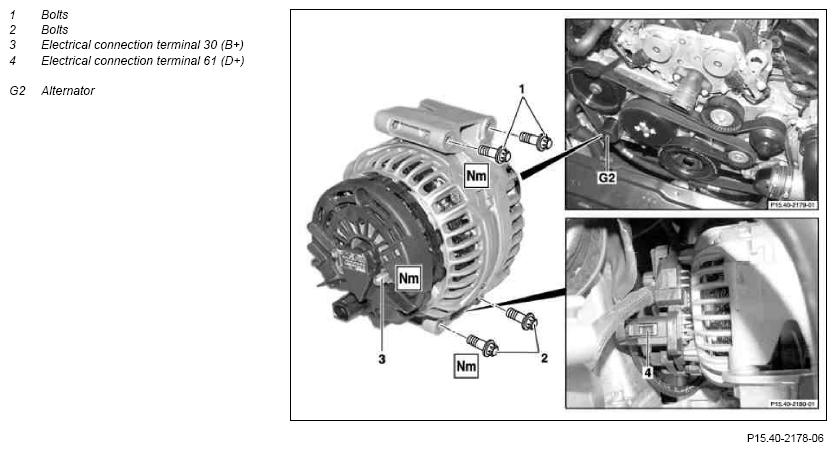

| 5 | Remove bolts (1, 2) and pull alternator (G2) upwards and out | *BA15.40-P-1001-01F | |
| 6 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 271 | |
|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 |
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 |
