Rear power window motor location/function - GF72.29-P-4109R: Notes

MODEL 230

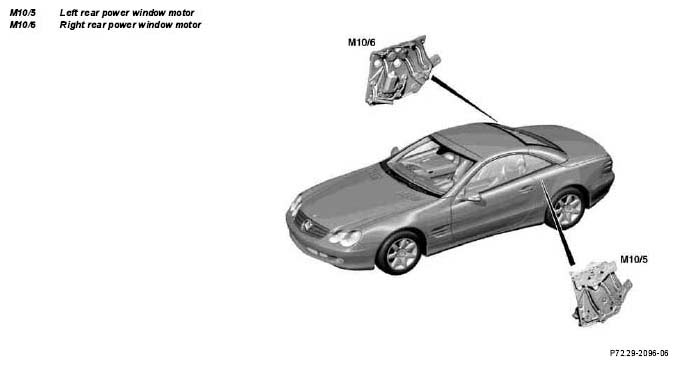

Fig 1: Identifying Rear Power Window Motor Location

Courtesy of MERCEDES-BENZ USA

	Rear power window motor, location	The left rear power window motor (M10/5) is located in the left B-pillar and the right rear power window motor (M10/6) in the right B-pillar of the vehicle.
	Rear power window motor, function		GF72.29-P-4109-02R
