Power windows (PW [EFH]), function - GF72.29-P-0003R: Notes

MODEL 230

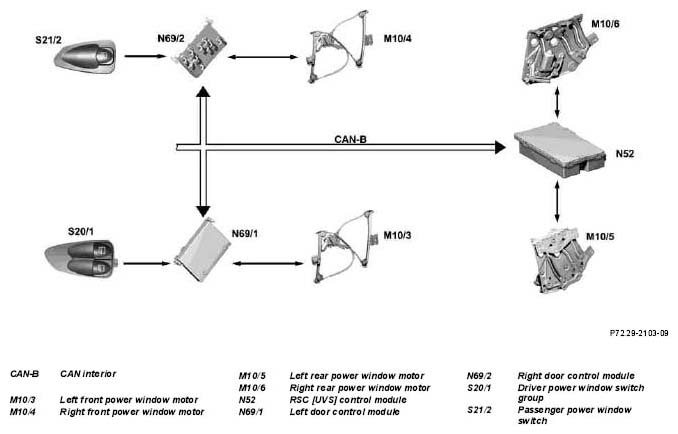

Fig 1: Power Windows (PW [EFH]) Function Chart

Courtesy of MERCEDES-BENZ USA

Networking of components

Function requirements:

No overvoltage or undervoltage
Circuit 15 ON or circuit 15R ON
Up to 31.5.02 the run-on time amounts to t = 15 min, after the "circuit 15R OFF" and the doors are closed.

As of 1.6.02 the run-on time amounts to t = 5 min, after the "circuit 15R OFF" and the doors are closed.

Function

The power windows make it possible to open and close the front and rear side windows.

There are two types of operations possible:

Manual raising/lowering
Automatic raising/lowering

Function via driver power window switch group (S20/1)

In the driver power window switch group (S20/1) the left power window switch (S20/1s1) and the right power window switch (S20/1s2) are integrated. They allow to operate the power windows on the driver and passenger side.

Function with passenger power window switch (S21/2)

It is only possible to operate the power windows of the passenger side with the passenger power windows switch(S21/2).

The rear side windows can only be opened/closed, if the front side windows are fully opened/closed.

The same switches are operated as for the front side windows. The rear side windows are fully opened automatically and can only be closed again manually.

The short stroke function ensures trouble-free opening and closing of the doors and of the frameless side windows.

When the driver or passenger door is open, the relevant front and rear window is lowered by the short stroke position. So long as the short stroke is active, it is not possible to move the window up beyond the short stroke position, or to close it, also not with an operate request of the driver power window switch group (S20/1).

All four side windows can be opened and closed with the remote control key (A8/1) using the convenience feature function.

All side windows can be closed and opened again using the recirculated air button of the AAC pushbutton control module (N22).

	Power windows (PW), location of components		GF72.29-P-0003-01R
	Opening / closing front door windows, function		GF72.29-P-2000R
	Opening/closing rear window, function		GF67.39-P-3001R
	Convenience opening of power windows, function		GF72.29-P-3004R
	Manual raising/lowering of power windows, function		GF72.29-P-3006R
	Automatic raising / lowering of power windows, function		GF72.29-P-3007R
	Short stroke electric power windows, function		GF72.29-P-4005R
