Left front door control module, location/purpose/design - GF72.29-P-4113R: Notes

MODEL 230

Shown on right door

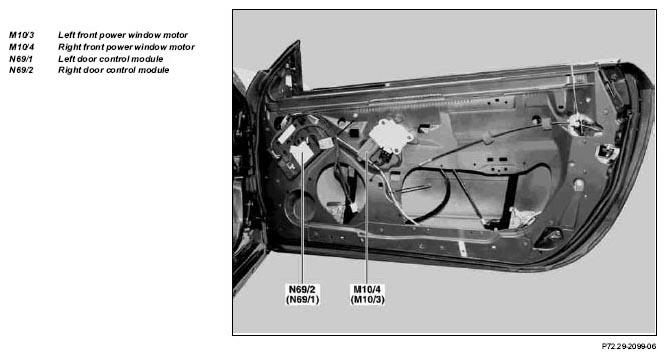

Fig 1: Identifying Left Front Door Control Module

Courtesy of MERCEDES-BENZ USA

	Left front door control module, location	The left door control module (N69/1) is located in the top, middle area of the left door interior.
	Left front door control module, purpose		GF72.29-P-4113-01R
	Left front door control module, design	Depending on the equipment version a different actuation and evaluation electronic circuitry is integrated in the door control module for realizing individual functions.
