Wheel speed sensor, location / task / function - GF27.19-P-5127G: Notes
TRANSMISSION 722.6

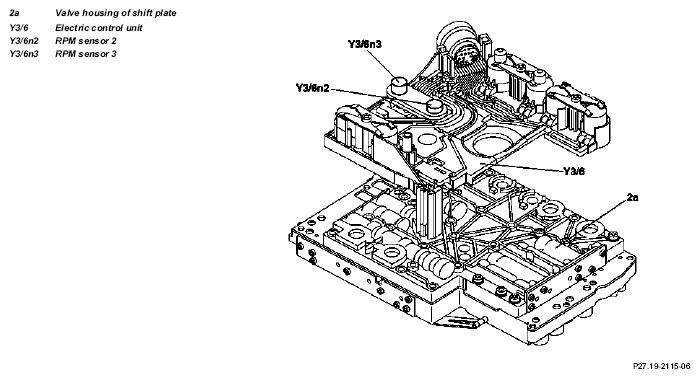

| Wheelspeed sensor location | The RPM sensors 2 and 3 (Y3/6n2 and Y3/6n3) are permanently connected with the supporting body of the electrical control unit (Y3/6) via contact tongues. | ||
| Wheelspeed sensor - Function | The signals from the RPM sensors 2 3 (Y3/6n2, Y3/6n3) are recorded in the ETC control module (N15/3) together with the wheel and engine speeds and other information, and are the input signals for the electronic control system. | ||
| Speed sensor, function | GF27.19-P-5127-04G |
