Driver airbag, location/task/design/function - GF91.60-P-4001R: Notes
MODEL 230

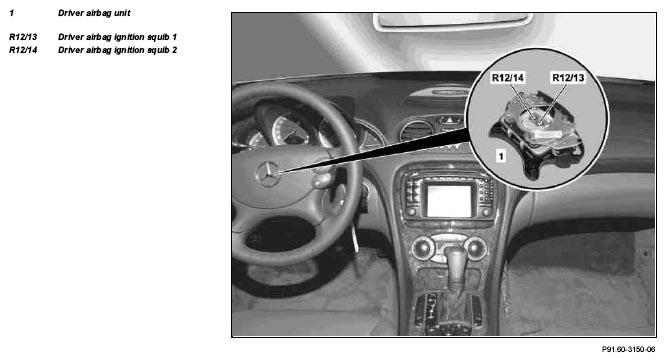

| Driver airbag, location | The driver airbag unit (1) with the driver airbag ignition squib 1 (R12/13) and the driver airbag ignition squib 2 (R12/14) is integrated into the impact absorber of the multifunction steering wheel. | ||
| Driver airbag, task | The driver airbag unit (1) protects against injury in the event of a frontal impact. In the event of a head-on collision, the driver's motion is cushioned and decelerated by an airbag which fills up the space between the steering wheel and the driver's body within 30 ms. | ||
| Driver airbag, design | GF91.60-P-4001-03R | ||
| Driver airbag, function | GF91.60-P-4001-02R |
