Remove/install WSS control unit - AR91.60-P-0800R
MODEL 230.4 as of 1.3.06 with CODE (494) USA version
Shown on code (401) Front comfort seats, incl. seat heating and seat ventilation

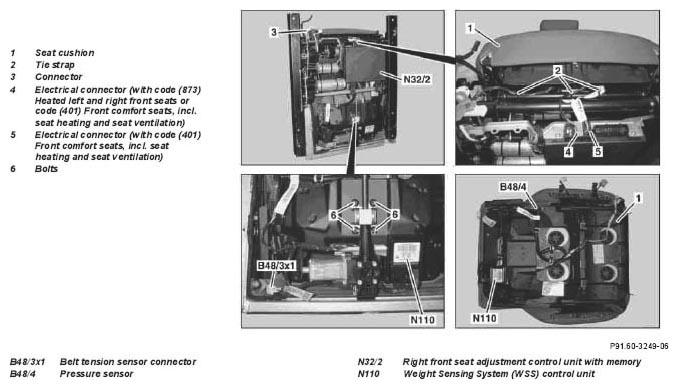

| Remove/install | |||
|---|---|---|---|
| 1 | Remove passenger seat | AR91.10-P-1000R | |
| 2 | Remove seat-back lining from backrest of front passenger seat | AR91.10-P-1910R | |
| 3 | Place front passenger seat with backrest on a clean surface | ||
| 4 | Remove cable ties (2) | ||
| 5.1 | Detach electrical connector (4) from right front seat adjustment control unit with memory (N32/2) | On vehicles with code (873) Heated left and right front seats or code (401) Front comfort seats, incl. seat heating and seat ventilation | |
| 6.1 | Detach electrical connector (5) from right front seat adjustment control unit with memory (N32/2) | On vehicles with code (401) Front comfort seats, incl. seat heating and seat ventilation | |
| 7 | Remove connector (3) from bracket and expose electrical wiring harness | ||
| 8 | Disconnect belt tension sensor connector (B48/3x1) and detach from seat frame | ||
| 9 | Remove bolts (6) and remove seat cushion (1) upwards out of side guides | ||
| Notes on seat occupied recognition | AH91.60-P-0760-01P | ||
| 10 | Install in the reverse order |
