Module Box Separation Point Connector End View (X35/15)

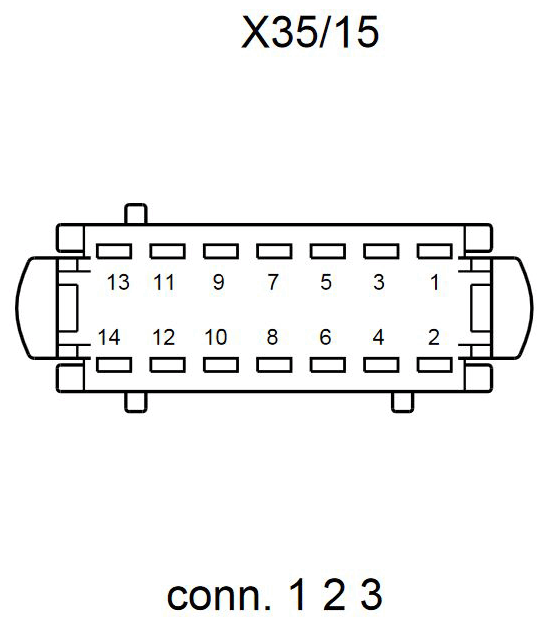

Fig 1: Module Box Separation Point Connector End View (X35/15)

G11074388

Courtesy of MERCEDES-BENZ USA
