Driver-Side SAM Control Module Connector End View (K40/2, N10/10)

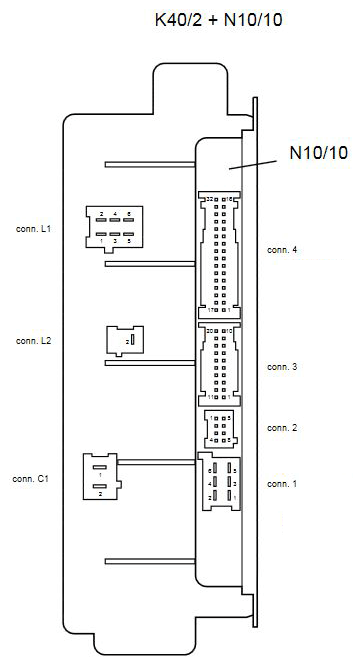

Fig 1: Driver-Side SAM Control Module Connector End View (K40/2, N10/10)

G11074338

Courtesy of MERCEDES-BENZ USA
