Intelligent Servo Module For Direct Select Connector End View (A80)

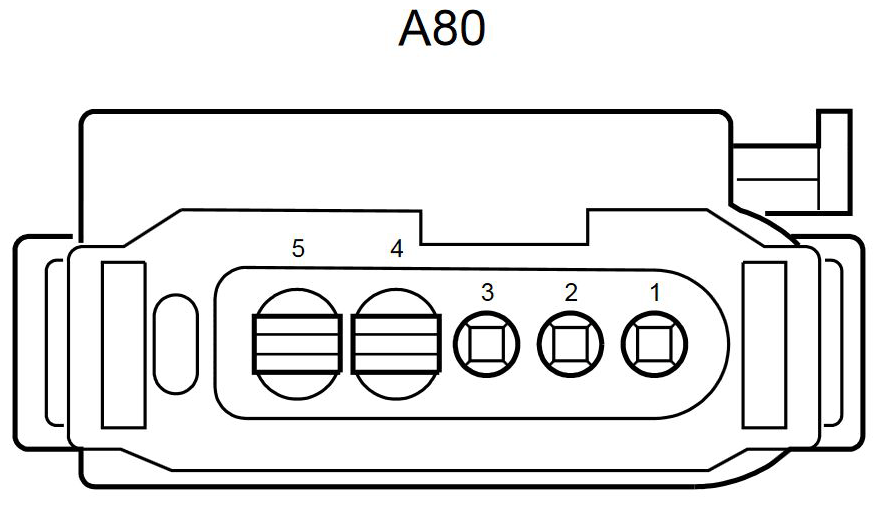

Fig 1: Intelligent Servo Module For Direct Select Connector End View (A80)

G11064446

Courtesy of MERCEDES-BENZ USA
