Refrigerant pressure sensor, location/task/function - GF83.40-P-2156T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6 as of 1.6.05
Shown on model 211.0

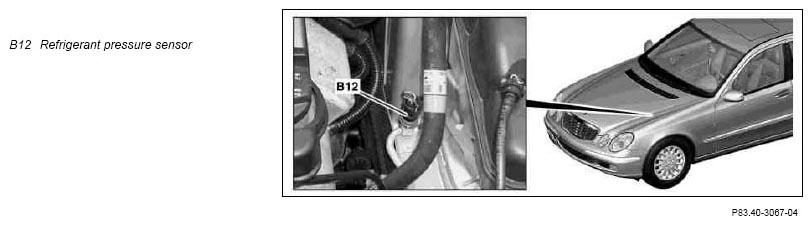

| Refrigerant pressure sensor location | The refrigerant pressure sensor (B12) is located on the left of the engine compartment at the refrigerant line. | |
| Refrigerant pressure sensor task | The refrigerant pressure sensor (B12) is used to record the refrigerant pressure. | |
| Refrigerant pressure sensor, function | GF83.40-P-2126-01T |
