Refrigerant compressor, location/task/design/function - GF83.55-P-2100T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 112, 113, 156, 271, 272, 273, 628, 629, 642, 646, 647, 648 in MODEL 211.0
ENGINE 112, 113, 156, 271, 272, 273, 642, 646, 647, 648 in MODEL 211.2
ENGINE 642, 646, 647 in MODEL 211.6

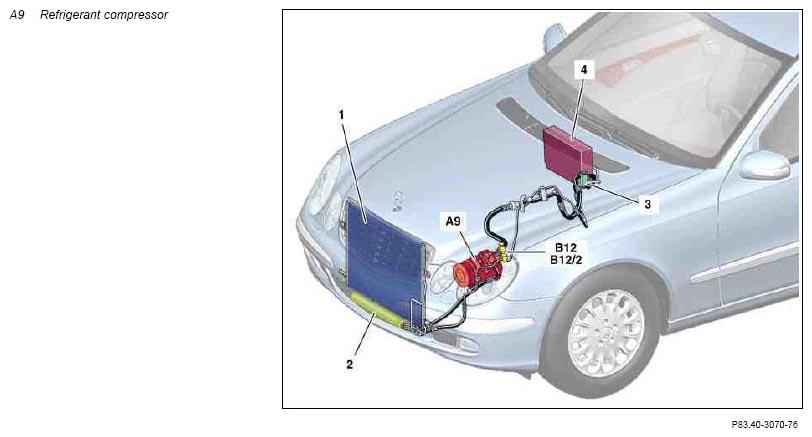

| Refrigerant compressor, position | The refrigerant compressor (A9) is flanged on to the left front of the engine. | |
| Refrigerant compressor, task | The refrigerant compressor (A9) is responsible for induction and compression of the refrigerant. | |
| Refrigerant compressor, design | GF83.55-P-2100-03P | |
| Refrigerant compressor, function | GF83.55-P-2100-02P |
